Functionality updates

• Multi-face job

Users can now choose the multi-face job type, in addition to the standard and double-sided type.

This new job type enables more efficient machining on systems equipped with aggregate tools or side milling motors.

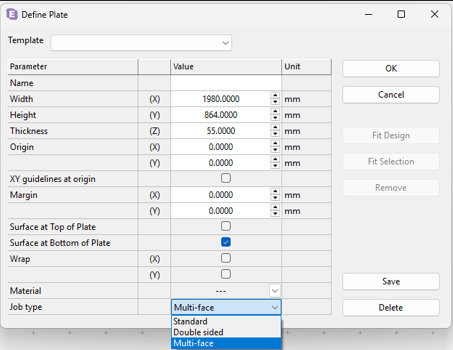

 Plate definition with added job type



Additional views have been added to support design and toolpath creation on each side of the material.


View selection by right clicking the active view

Drawing, editing, and toolpathing on each side of the material are now fully supported, along with most other EnRoute functionality.

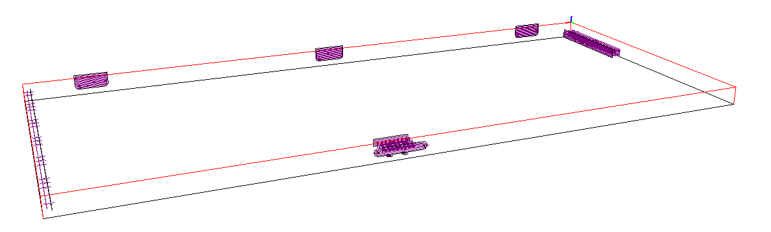

Perspective view of multi-face job

For design and positioning, users can simply select an object and move or copy it to another side. The object will automatically be repositioned and reoriented to match the selected face.

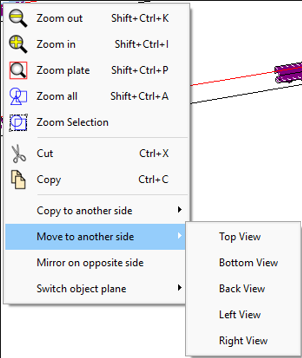

Contextual menu with Move. Copy & switch plane.



When working with imported geometries, objects may already be in the correct position but need to be assigned to the appropriate side. For such cases, users can simply switch the plane — this will assign the geometry without altering its position.

Setting up aggregates is straightforward:

• Assign tools to a slot that matches the aggregate configuration.
• Enter offsets if required.
• Click Save to confirm.

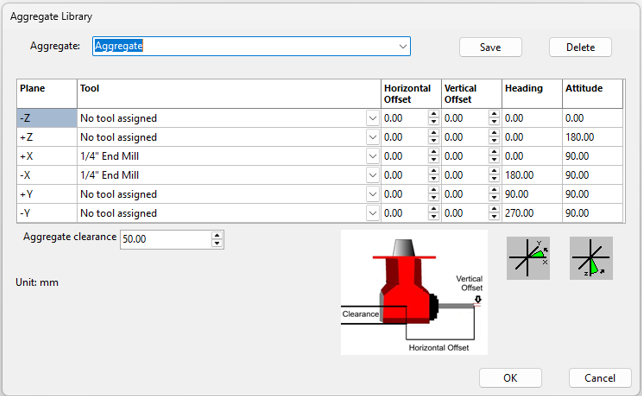

Aggregate library menu

When outputting a prepared job, EnRoute will now automatically select the appropriate aggregates when available.

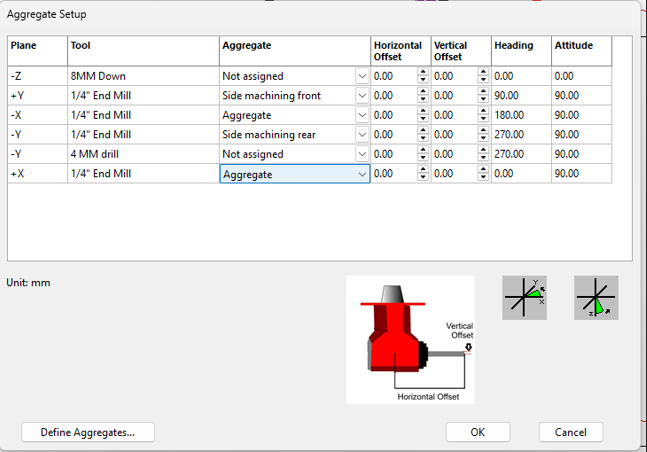

Aggregate setup window when creating output

Before generating the output, as always, make sure that the tools are in the correct location in the tool changer.

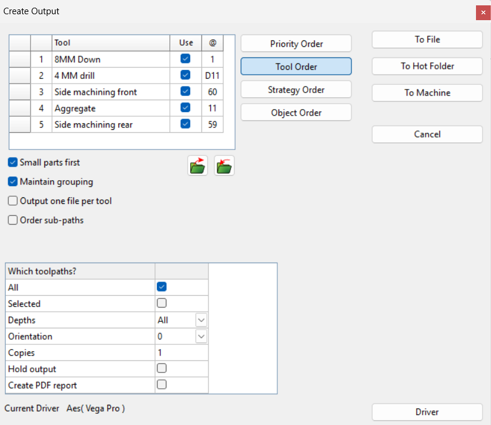

Output window, with tool order selected & positions displayed

Tutorial
https://www.youtube.com/watch?v=7RRg0GWNtyw




Fixed bugs


• Fixed issue where the Radius/Diameter/Line Dimension tool did not allow stepping back.
• Fixed issue where the Single Dimension tool could not be closed with right-click.
• Fixed issue causing existing saves to be cleared before the new save was built in EnRoute.
• Fixed crash when importing AutoCAD DXF files (Build 219).
• Fixed issue where re-outputting ATP jobs with labels caused coordinate shifts without edits.
• Fixed issue where multiple selection edits didn’t apply when double-clicking a toolpath.
• Fixed issue were double-clicking a Thread Milling toolpath did not update settings.
• Fixed issue where Tool Path Plan options were all greyed out for open contours (engrave now available).
• Fixed issue where editing text spacing produced incorrect results.
• Fixed issue where the 3D Simulate progress bar did not show progress.
• Fixed issue where Horizontal -Y / +Y axis drills in the Drill Bank Setup did not save correctly.
• Fixed issue where editing Plate from Contour settings reverted plate size to its original.
