(see also: Paths Overview)

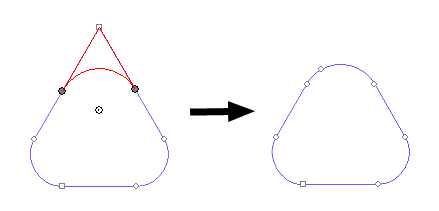

The Optimize by Smooth Arc tool creates an arc segment between two points in a path.
- Select the Optimize by Smooth Arc tool.
- The Optimize by Smooth Arc tab appears in DesignCentral.
- On the path, click the point where the arc will begin.
- Click the point where the arc will end.
- Drag the start and end points over the path and the center of the arc to adjust the shape of the arc, or adjust the Diameter in DesignCentral.

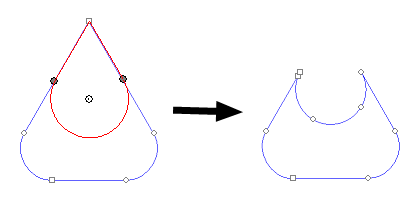

- Press Tab to select the direction of the arc.
- Click Apply or double-click anywhere inside the design area.
