RIP and Print Dialog - Adjustment Tab

Ryan Blake
Updated

(see also: RIP and Print Overview)

Notice: this tab is can have drastic effects on the output of your job. If you are uncertain how this works, it is best to leave it as is.

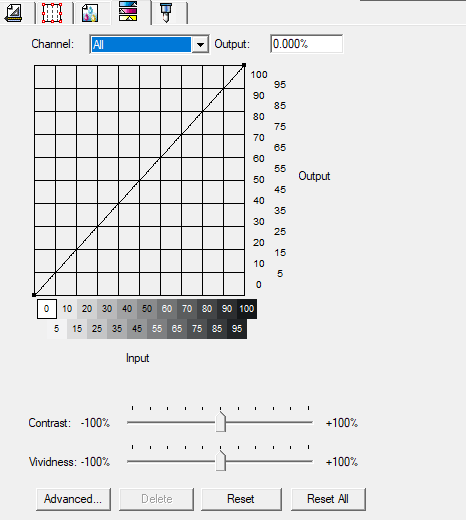

The Color Adjustment tab provides some basic tools to manually adjust the output color.

Each color channel is listed separately as a linearization curve that determines what percentage of coverage will be used (output) for a specified percentage in the original image (input).

Looking at this tab in the Job Properties when the job is in Production Manager allows you to see an estimated preview of these changes.


Channel


 Select the color channel that you want to edit. Select All to apply the changes to all color channels.

Output


 The value for the point that is currently selected on the linearization curve.
◾Click on the curve to select a different point to edit. You can also select a point by clicking on the input axis label.
◾To change the value at a given point on the curve, edit the value in the Output field or click and drag the point up or down.

Contrast


 Adjusts the amount of contrast in the image.

This setting is only available when All color channels are selected

Vividness


 Adjusts the vividness of the image. Higher settings boost color saturation and brightness at the expense of color fidelity and detail. Lower settings decrease color saturation and brightness, but increase contrast.

This setting is only available when All color channels are selected

Advanced

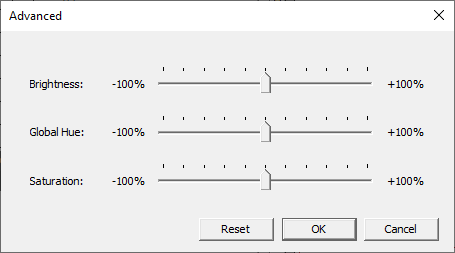

 Click to edit the color settings in the image using a more advanced model.

This setting is only available when All color channels are selected
Brightness Higher values make all colors in the image lighter in shade. Lower values darken the colors in the image.
Global Hue This setting adjusts the overall hue of the picture. It can make the image bluish, or sepia-toned. For this setting, the range of values from -100% to +100% represents the spectrum of colors that can be applied to the image.
Saturation Higher values increase the amount of color in the image, but can reduce the contrast and detail. Lower values reduce the amount of color.
Reset Click to reset all sliders to their defaults.

Delete


 Click to delete the selected point from the linearization curve.

Reset


 Click to restore the values and settings for the current channel to its original states.

Reset All


 Click to restore the values and settings for all channels to their original states.
