Measurements, Dimensions, and Labels

The software allows you to measure, label, and dimension objects. By using the measuring tools, you can indicate the horizontal, vertical, and diagonal dimensions of a design, or you can label objects. The lines and labels can then be output to a printer or a cutter.

The majority of these tools can be found on the Measurement Toolbar. To locate this toolbar, go to:

  • View > Toolbars... and then check the box labeled Measurement Toolbar
    mceclip3.png          mceclip1.png

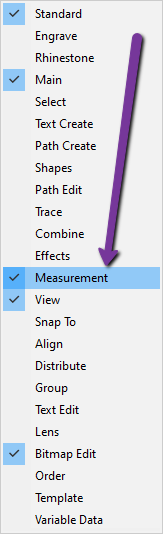

  • Right Click on a Toolbar and select Measurement

The following tools allow you to produce dimension lines for your artwork:
