Dimension to Page Tool

(see also: Measurements, Dimensions, and Labels)

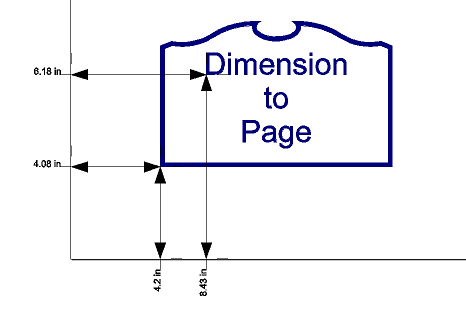

The Dimension to Page Tool allows you to automatically create horizontal and vertical dimension lines that measure the position of the object to the lower-left corner of the design area. These dimension lines are linked to the object and will be updated if the objects change position.


Text objects are measured from the baseline of the text.

  • Select the desired objects.
  • Select the Dimension to Page Tool

Once you click the tool, the dimensions are automatically applied. No additional options are available for tihs tool.
