Para este tutorial, debe ver la ventana central de diseño. Si no ve la Ventana Central de Diseño, en la parte superior de su ventana Flexi, haga clic en la opción de "ver" y luego elija "Central de Diseño" o utilice el comando de teclado CTRL I.
Primer paso.
Seleccione su diseño.

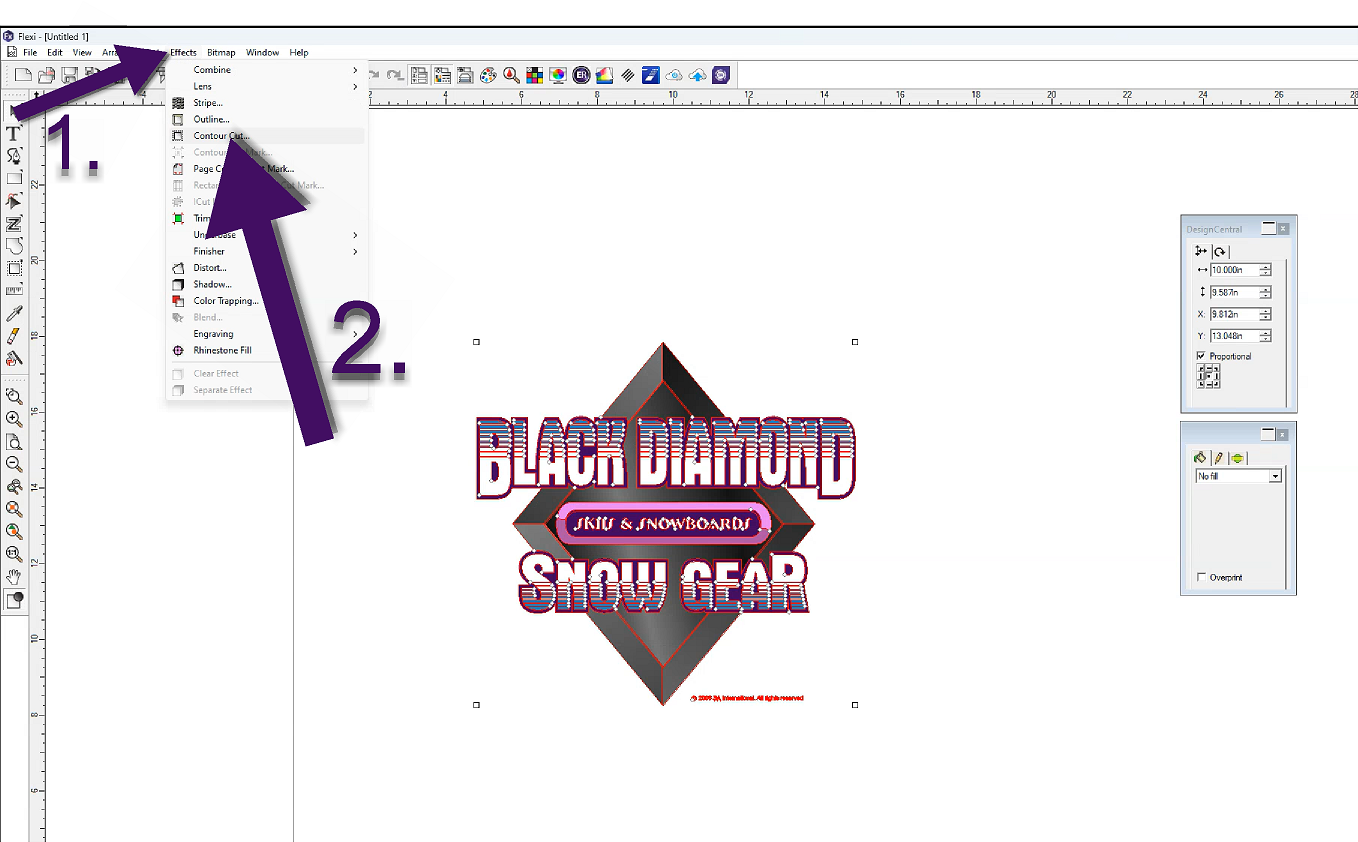

A continuación, seleccione (1.) "efectos" en la parte superior de la ventana Flexi y (2.) "corte de contorno".
Segundo paso.

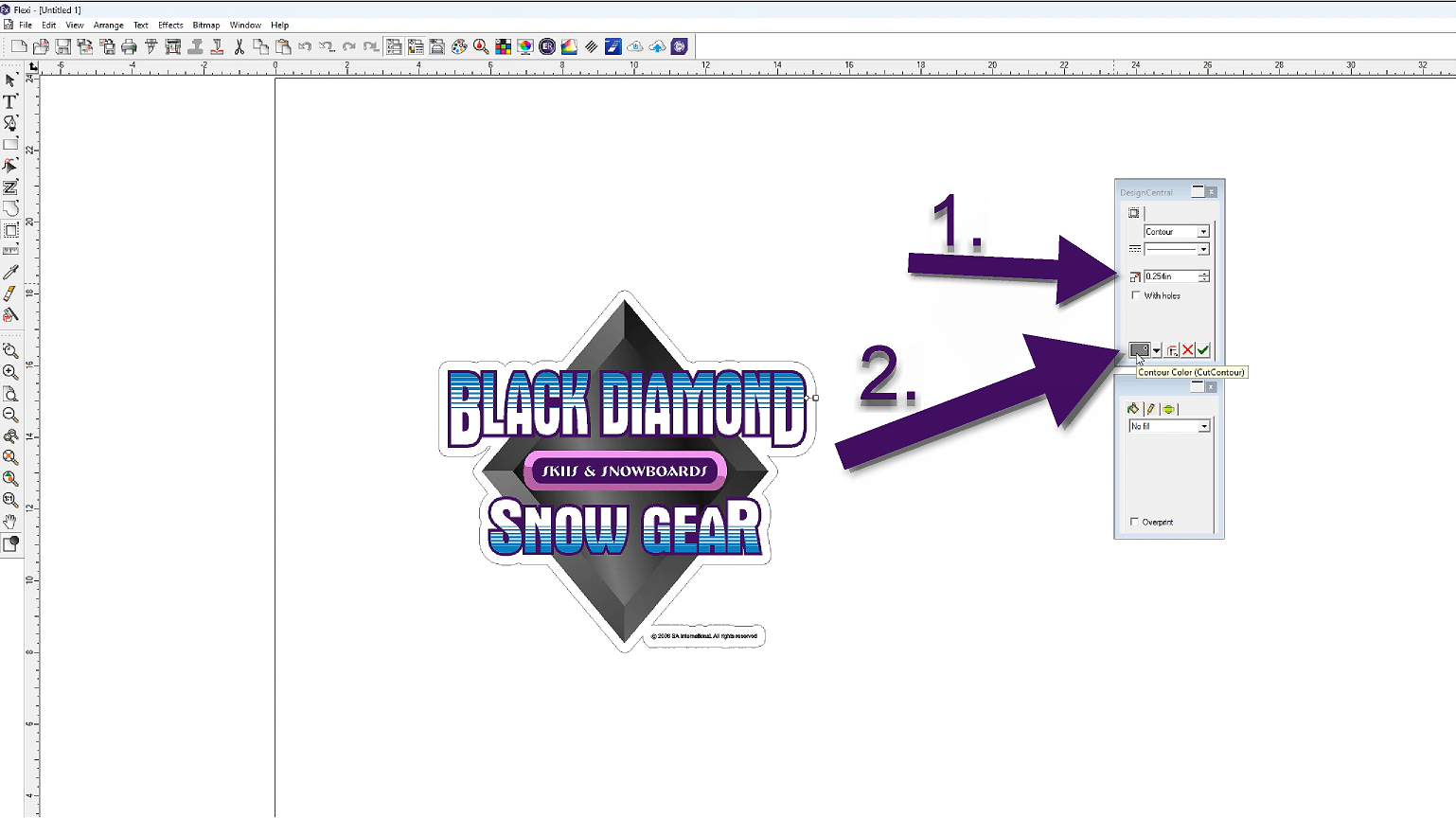

Ajuste el margen (1.) y tome nota del color del corte de contorno (2.) pasando el ratón por encima del cuadro de color situado en la parte inferior de la ventana central de diseño.
Haga clic en la casilla de verificación verde situada en la parte inferior de la ventana central de diseño para aplicar el primer corte de contorno.
Step 3.
Make sure that your design is still selected.

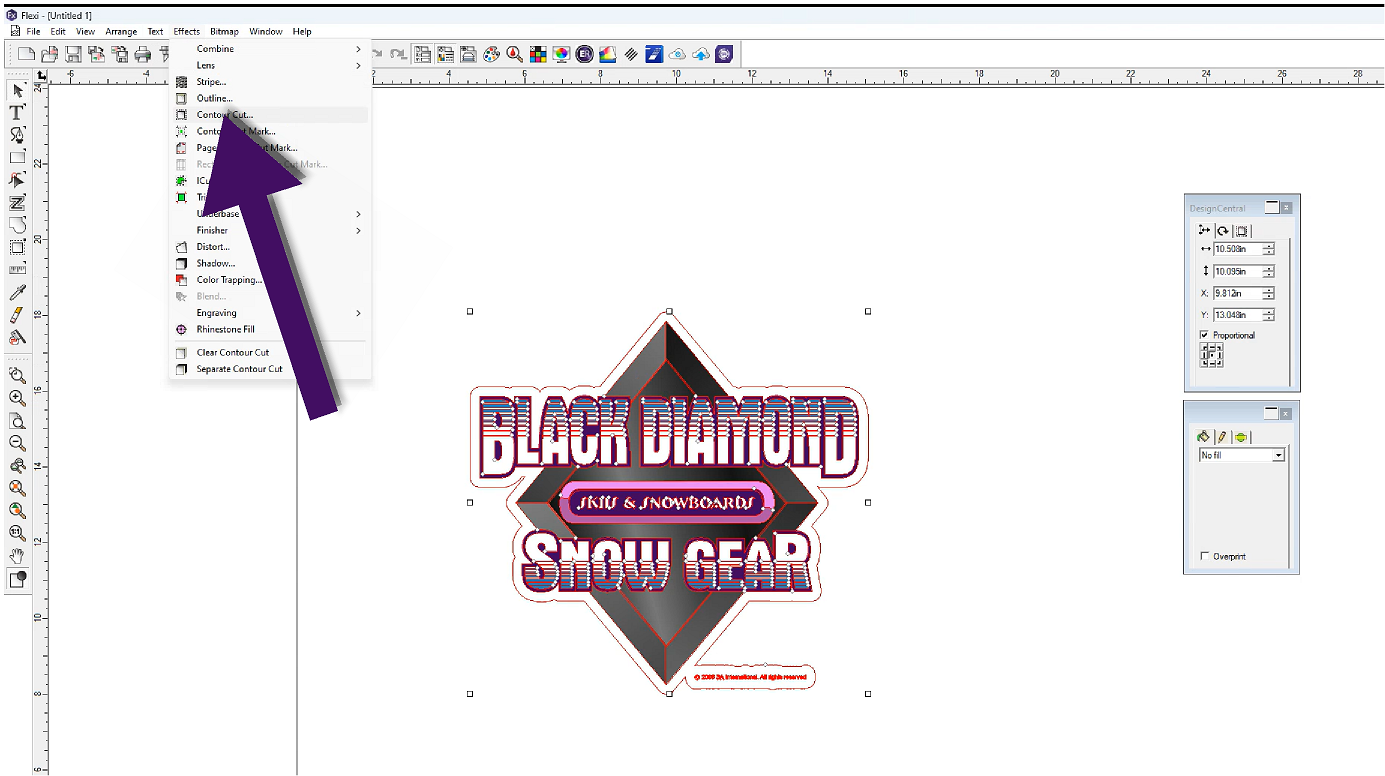

Then, select "effects" from the top of the Flexi Window and "contour cut" again.
Step 4.

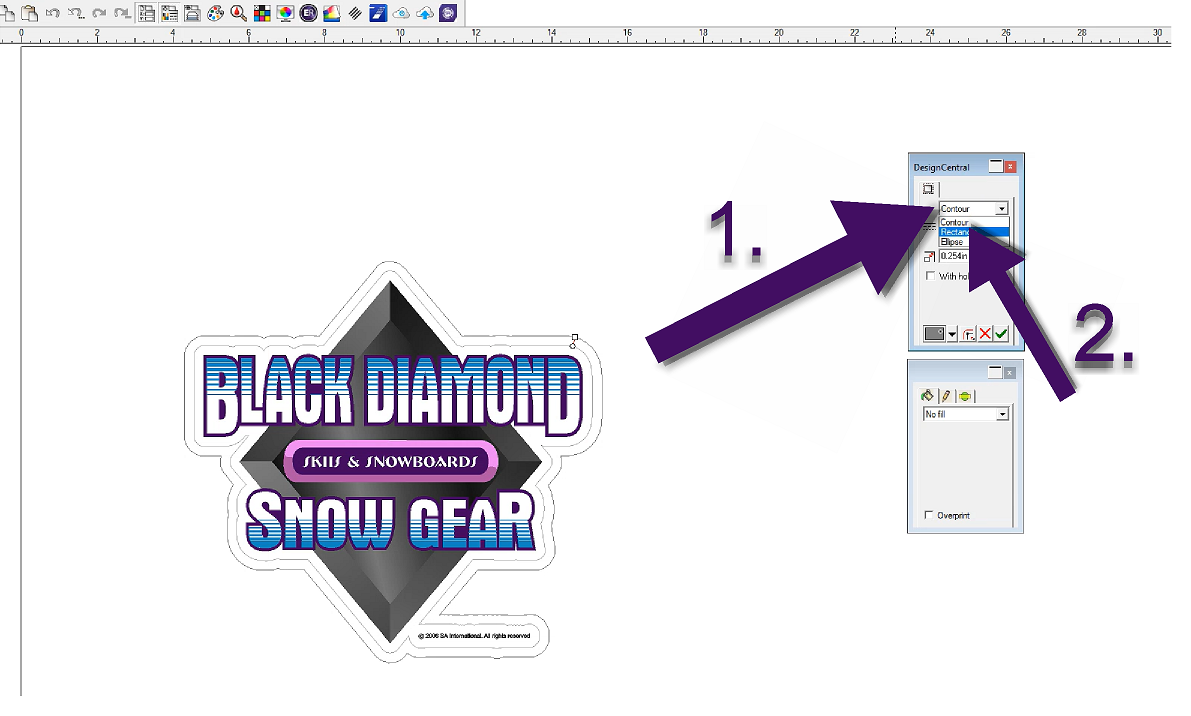

In this step, you can choose to change the Contour Cut shape.
Contour: Following the border of the selected design (as long as the design is transparent or vector artwork).
Rectangle: Creates a Rectangle around the design.
Ellipse: Creates an Ellipse around the design.
For this demonstration, we went with "Rectangle" for the second Contour Cut.
Step 5.

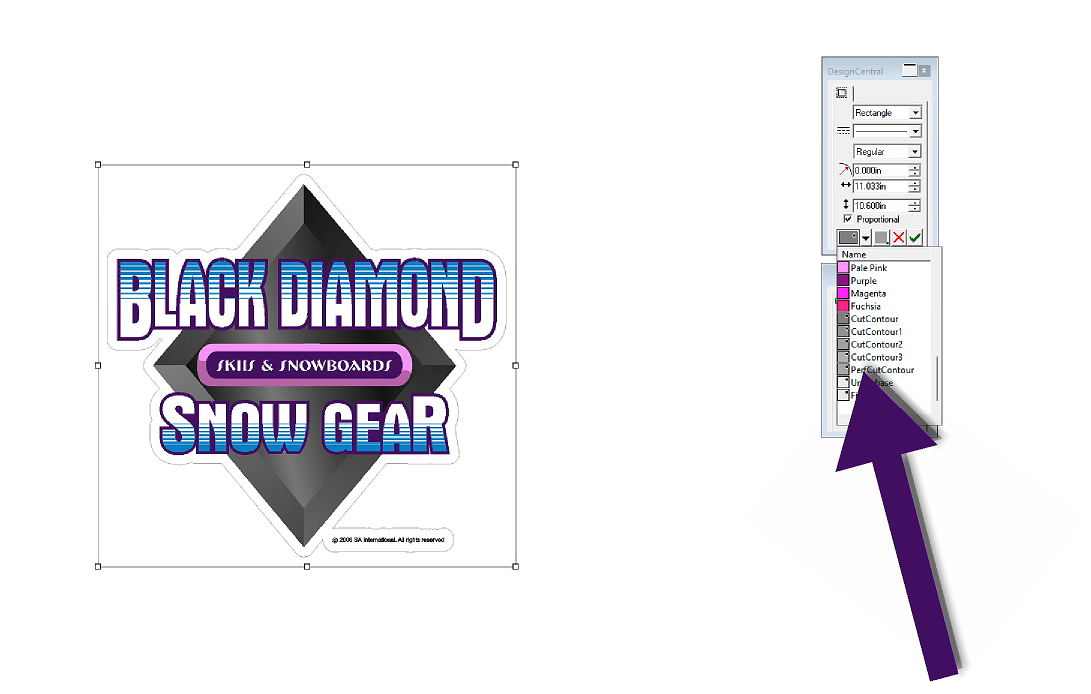

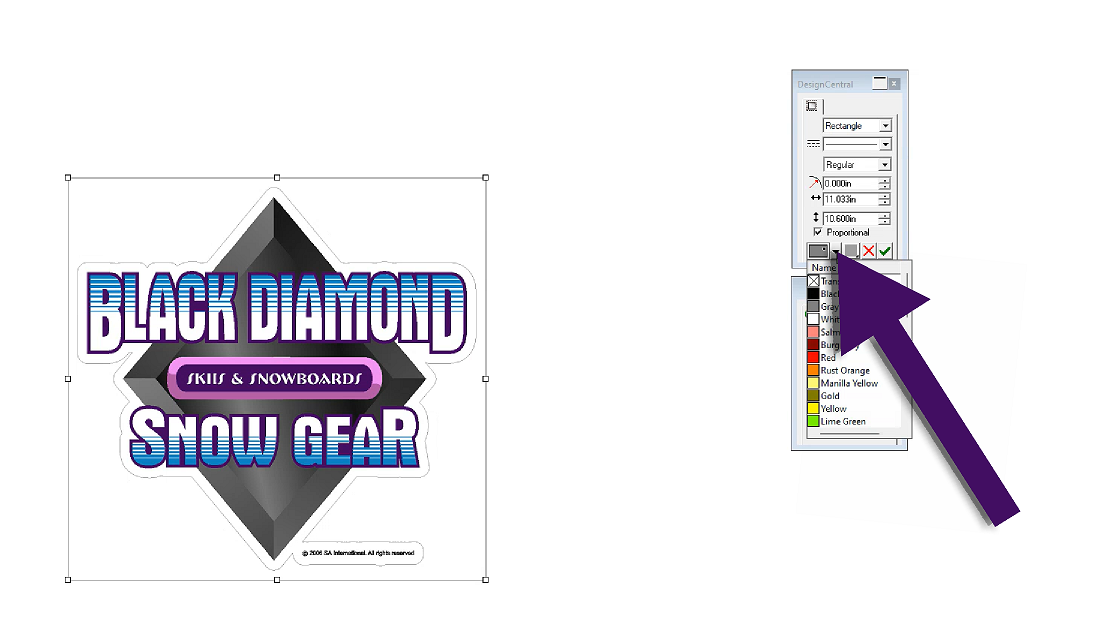

After selecting the shape of your contour cut, we will differentiate the second Contour Cut from the first by changing the Contour Cut "color". To do this, click on the aforementioned color box at the bottom of your design central window.
And scroll down until you see the options containing "CutContour" in the name. Here you will choose a different color then what was selected for the first contour cut. For this demonstration, we went with PerfCutContour. Click the green checkbox at the bottom of your Design Central window to apply the second Contour Cut.
Step 6.

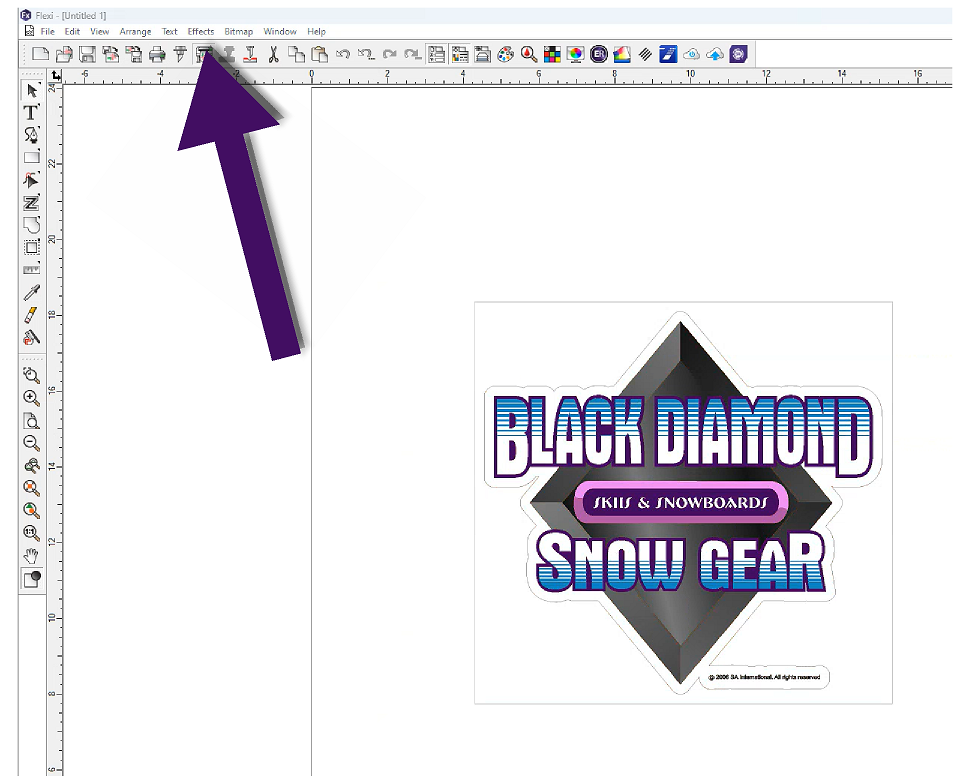

With both the Contour Cuts (with separate Contour Cut colors) applied to your design. Click on the "Rip & Print" button to move onto the next step.
Step 7.

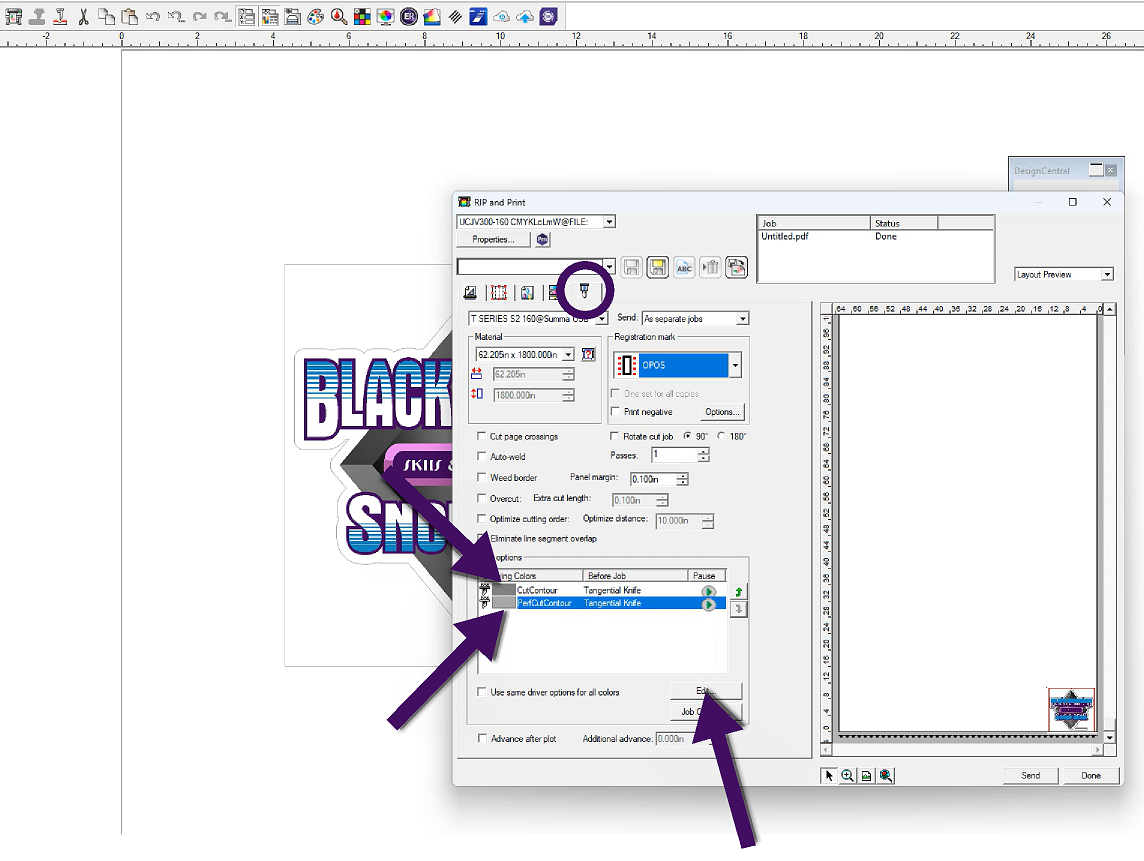

Select the Contour tab.

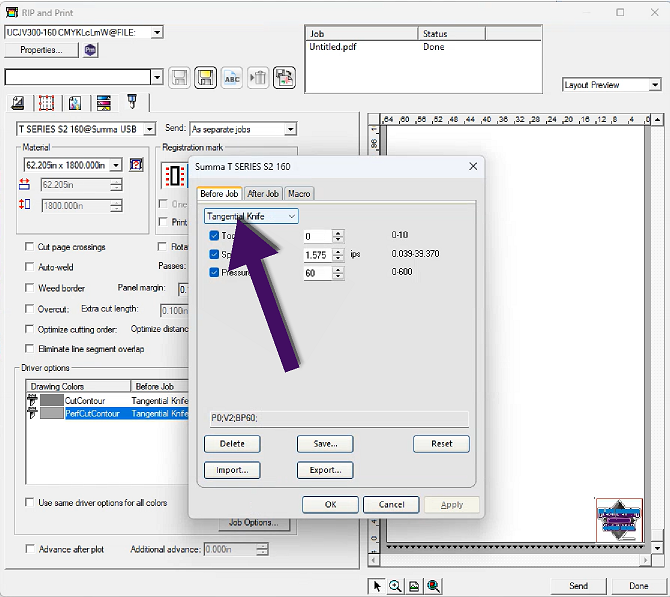

If done correctly, you will see multiple Contour Cut colors. By default each color will have the same cut parameters. Select the option you would like to change the cut parameters on, and then click on "edit".
Step 8.

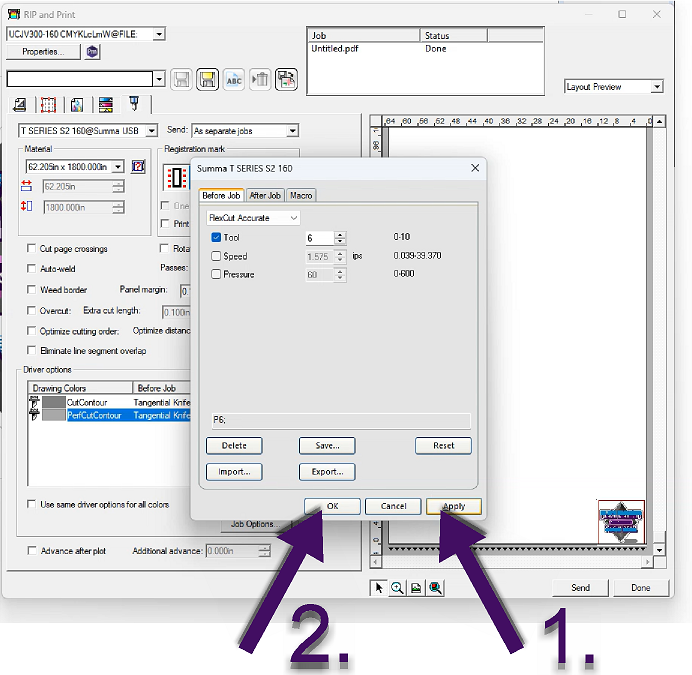

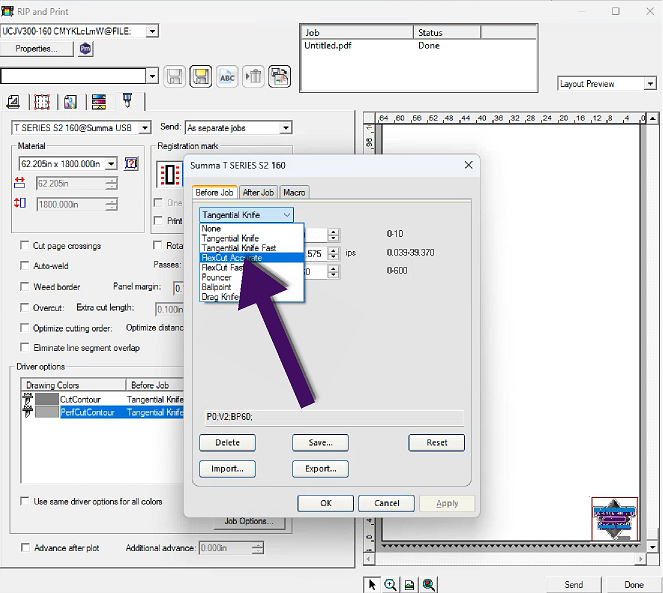

Under the tab "before job" click on the dropdown menu to select another cut type.
For this demonstration, we went with "FlexCut Accurate" for our Summa T series cutter, if you are using a different machine, your options under this menu may differ.
Click on (1.) Apply and then (2.) OK
Step 9.

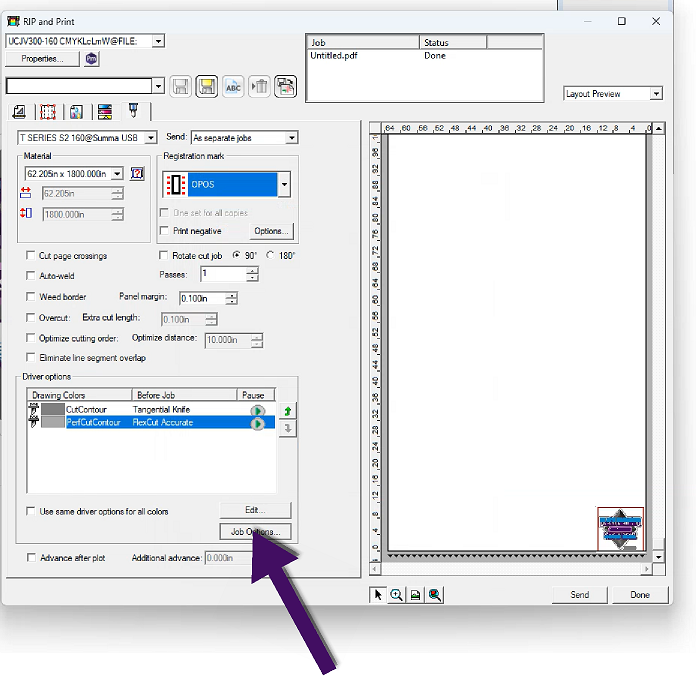

In the screenshot below we can now see that CutContour is set to Tangential Knife and PerfCutContour is set to "Flexcut Accurate". Depending on your selected cutter, you may have alternative cut parameters under the "Job Options" field shown below. (For some cutters the "job options" tab will not be used. Apply your cut parameters under the "before job" window from the previous step). And then move on to step 10.

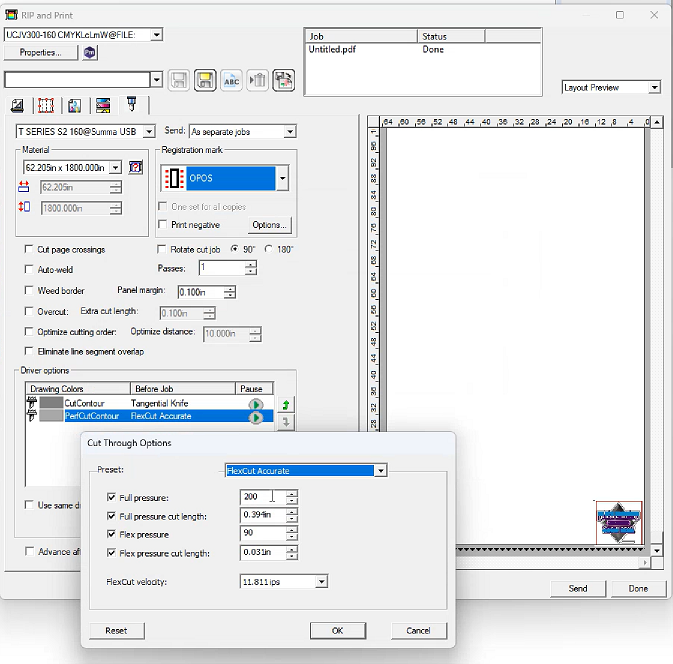

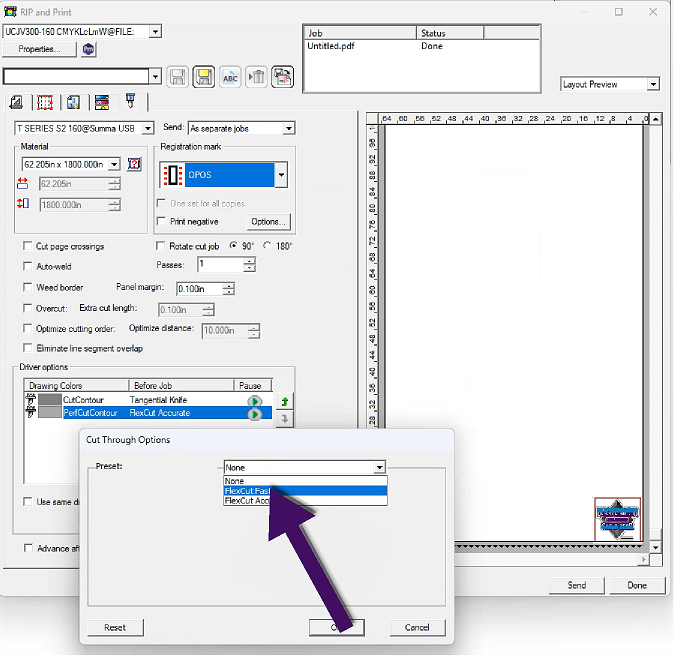

Set the preset to match the option chosen under the "before job" tab from step 8.
In this case, FlexCut Accurate. Set your pressure settings the desired parameters.
Paso 10.

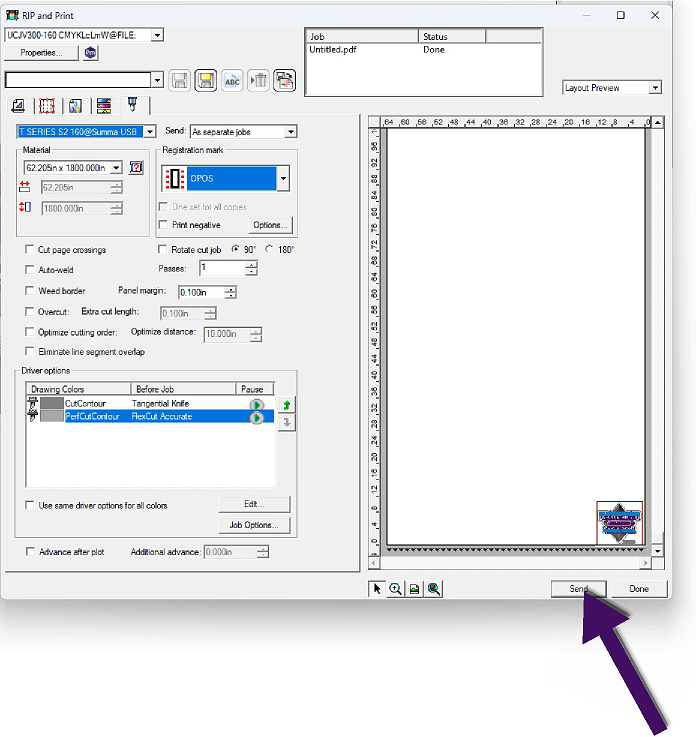

Con sus colores Cut Contour configurados con los parámetros apropiados para su trabajo de impresión y corte, usted está listo para enviar el trabajo al gerente de producción.
(El color que esté primero en esta lista cortará primero, puedes usar las flechas arriba y abajo para cambiar el orden de corte).
