Circle Tool

(see also: Shape Tools Overview)

The Circle tool has three different ways to create a circle dependent on your needs:

  • Center Radius
  • Two Point
  • Three Point

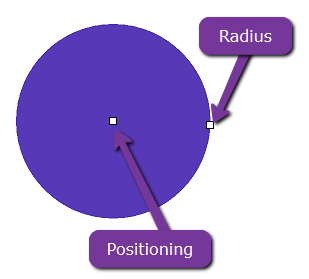

Center Radius

Center Radius will determine the width of the circle from the center of the circle. You can change these parameters in Design Central or the handles on the shape. The X and Y positions are based on the center of the circle.

mceclip1.png  mceclip2.png

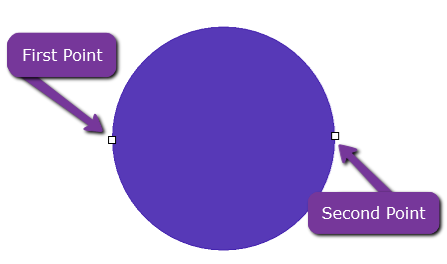

Two Point

This allows you to draw a circle between two points. The diameter of the circle is determined between these two points.

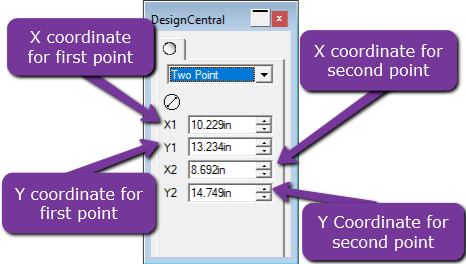

Design Central will let you enter the exact XY Coordinate for each of these two points.



Three Point

The Three Point Circle operates much the same way as the Two Point, drawing the perimeter of the circle so that it meets all three points wherever they are.
