Job Properties - Separations Tab

(see also: Job Properties Overview)

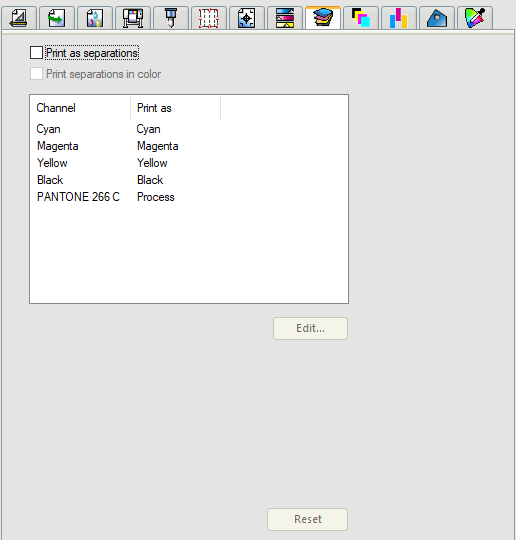

The Separations tab contains a number of options related to printing color separations.


Print as separations

Check to print each color plane separately.

To print separations for certain colors only, clear the checkboxes for the colors you do not want to print.

Print separations in color

Makes each process color separation print in the appropriate color of ink. If you do not select this option, all process color separations will print in black.

Separations for spot colors will always print in black.

Edit

Click to edit the way that color channels are output.


If you have spot colors in your job, they will also appear in the list. You can use the Edit Channel details by mapping a spot color such as white or varnish to the matching spot channel in the printer.
