Job Properties - Step and Repeat Tab

(see also: Job Properties Overview)

Use the Step and Repeat tool to create textile patterns by repeating jobs over the selected area with certain drop styles and/or mirroring. This feature leaves no space between copies of the image so that a seamless pattern can be created. The original design will need to be designed so that all edges match up if you want a repeating pattern.

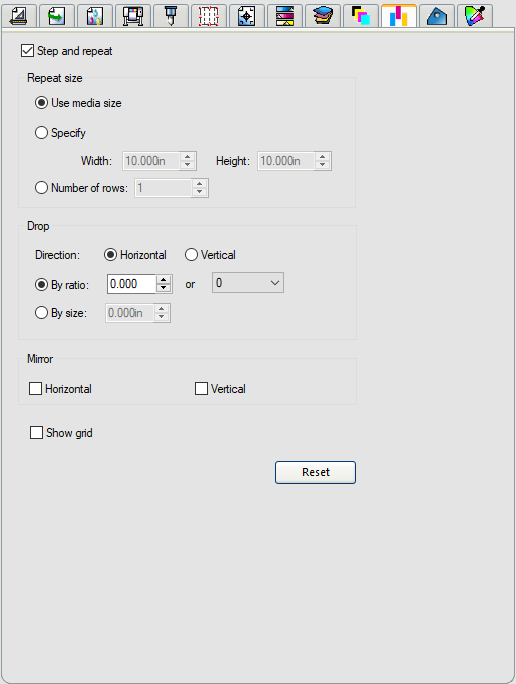

  • Click Step and Repeat to enable the feature

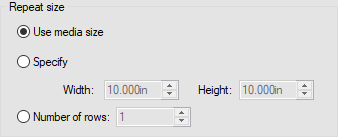

Repeat Size

The size of the area in which the job will be repeated


Use Media Size


Selecting this option will fill the entire media size defined on the layout tab.

Specify


Specify a specific area in width and height

Number of rows


Selecting this option will repeat the job across the media width for the specified amount of rows

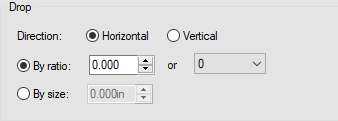

Drop

Define the offset between one repeat and the next.


Direction


Select whether the drop is vertical or horizontal

By ratio


This drop down contains the most common types of drops

By Size


Specify an exact amount of offset for the drop

Mirror

Selecting this option will mirror each repeat versus the previous one. You can select horizontal, vertical or both.


Show Grid

This option will display lines around each repeat in the preview

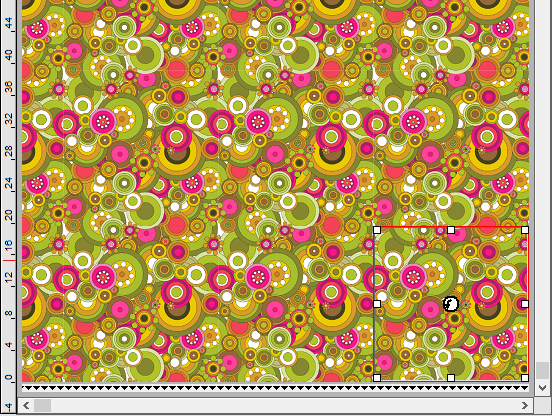

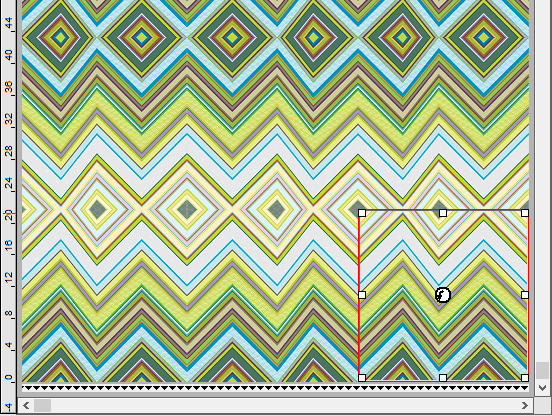

No Drop, Mirrored both Horizontally and Vertically:

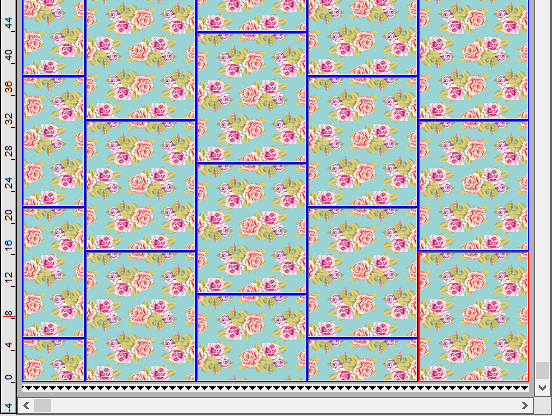

Vertical 1/3 drop:

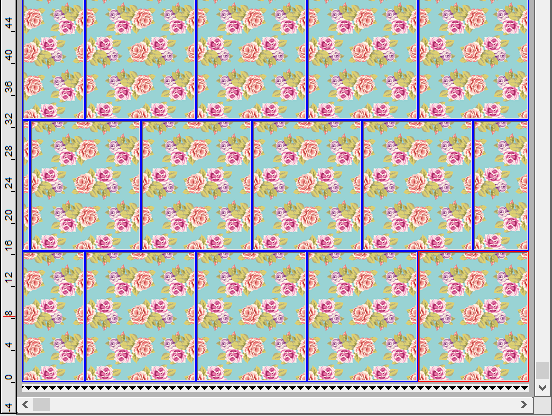

Horizontal 1/2 drop:
