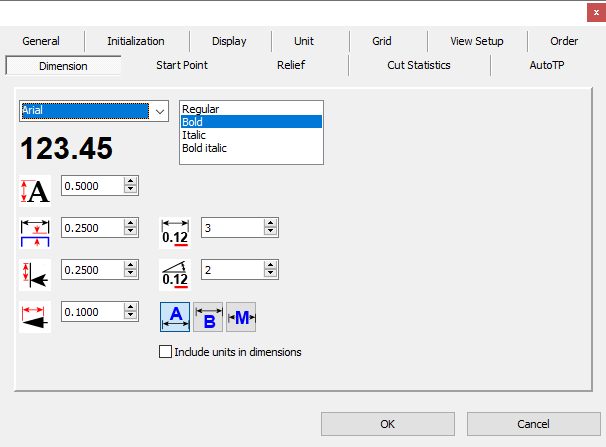

Define the display parameters for all dimension tools.
![]() |
Text height in the dimension tool |
![]() |
Define the separation distance between dimension extension lines and the contour surface |
![]() |
Define the height of the arrow |
![]() |
Define the width of the arrow |
![]() |
Set the number of decimal places when measuring a line segment |
![]() |
Set the number of decimal places when measuring an angle |
![]() |
Sets the position of text above the arrow line |
![]() |
Sets the position of text in the middle of the arrow line |
![]() |
Sets the position of text below the arrow line |
