Functionality updates

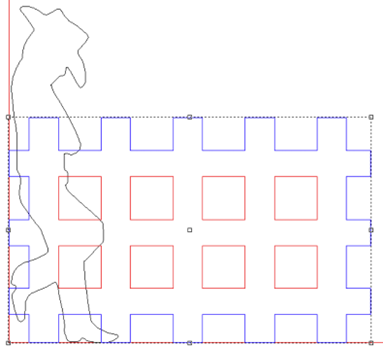

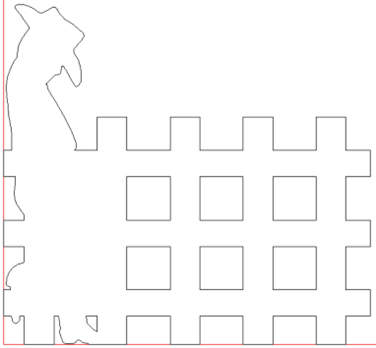

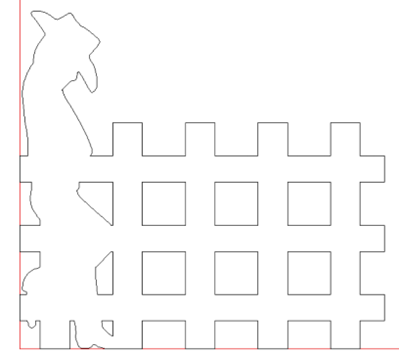

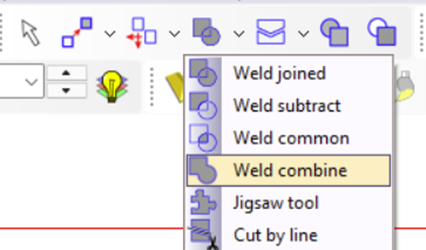

• Weld Combine

  A new welding option allows users to combine geometries more effectively. It now respects geometry groups, preserving containment and hole logic.



• Geometry – Centerline Generator

  Under the offset options, users can now generate centerlines for selected geometries.

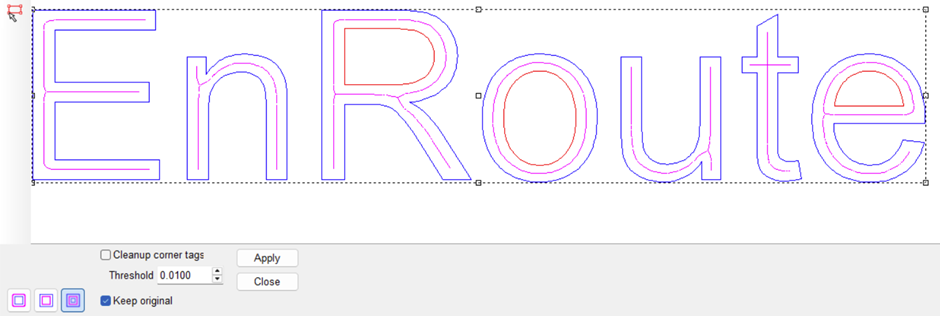

   View of centerline being generated


• Tool Changer – Filter Tool List

  Users can now type directly into a tool changer slot to filter the dropdown list, making tool selection faster and more efficient.

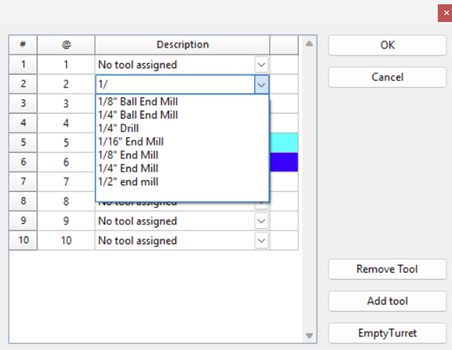

   Tool filtering in tool changer setup


• Daisy Chain Improvement

  Daisy chaining now supports toolpaths that are spaced further apart. Additionally, the tolerance setting can be adjusted within EnRoute preferences.

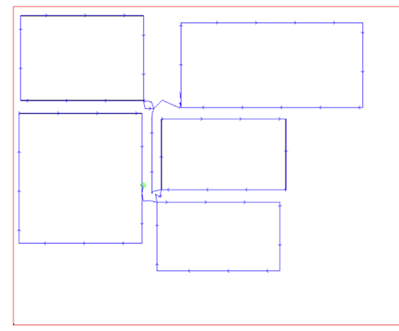

   Daisy chaining now accept more space in between objects



• Label Printer Update

  Double-clicking a label in the Label Printer application now sends it directly to print.



• License Error – Save Option Before Close

  The software will no longer close immediately when a licensing error occurs. Users will now have the opportunity to save any unsaved work before exiting.


• Toolpath Handling Improvements

  Toolpath generation and editing have been optimized for smoother performance and better responsiveness.


 Fixed bugs

• Simulation bug: Profile tool - inside corners are not simulated accurately
• Fine toolpath is not placed properly with Rough, clean and fine options
• Oval tool was laggy and difficult to use
• Dialog fixes for reliefs to mesh & nesting function
• Changing the layer color does not update the preview box
• Bevel relief tools do not have the appropriate icon
• Relief slicing does not work from the bottom plane in a double-sided job
• Scaling with copy enabled causes UI glitch
• Undo command does not work while using trim tool
• Toolcomp messages are unnecessarily being sent
• PT error by "UsePtc=" value missing from CNF => assume UsePtc=0
• EnRoute 6 simulation options do not display new functionality
