Functionality updates
Adding Width to Open Contours
Users can now apply a width when a toolpath is positioned on the center of an open contour. This allows cuts to be created that are wider than the tool diameter.

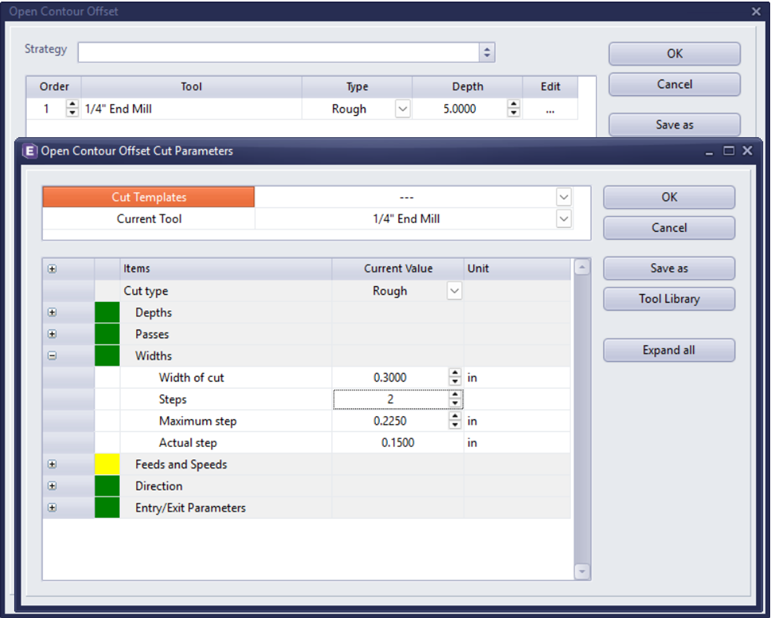

width setting in the tool properties

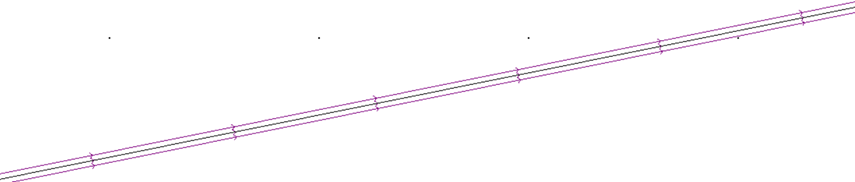

tool paths offsetting to both sides of the contour to achieve the desired width
Dimension Tool – 4th Click Applies Dimension
The Dimension tool behavior has been updated so that the 4th click now applies the dimension, providing a more intuitive workflow.
G1 Object Order – Manual Option
A new Manual option has been added to the object output order settings.
When a manual ordering is created in EnRoute, this checkbox is automatically selected. When enabled, objects are output in the order displayed in the Hub's Objects tab. Any changes to the manual ordering are automatically synchronized with the order shown in the Objects tab.

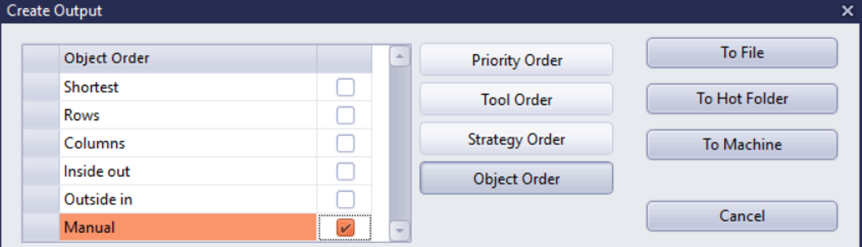

Manual option under the object order
EnRoute Hub Updates
The Objects page has been enhanced with the following improvements:

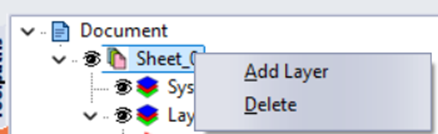

- Create new layers directly from the Objects page.Right-click menu on a sheet to add layer or delete the sheet
- Create new sheets directly from the Objects page.

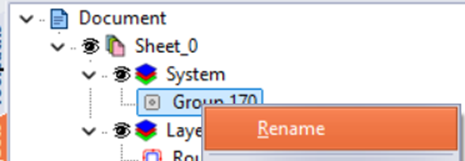

Right-click document to add sheet - Rename layers and groups directly within the Objects page.Right-click a group to rename it
DXF / DWG Import Filter Update
The DXF / DWG import filter has been updated to provide an improved import experience and overall usability with DXF files coming from various applications.
