Functionality updates
Relief Slicing on X, Y, and Z Axes
You can now slice reliefs along any primary axis — X, Y, or Z. This gives you far more flexibility when preparing 3D parts and speeds up workflows that rely on sectioning.

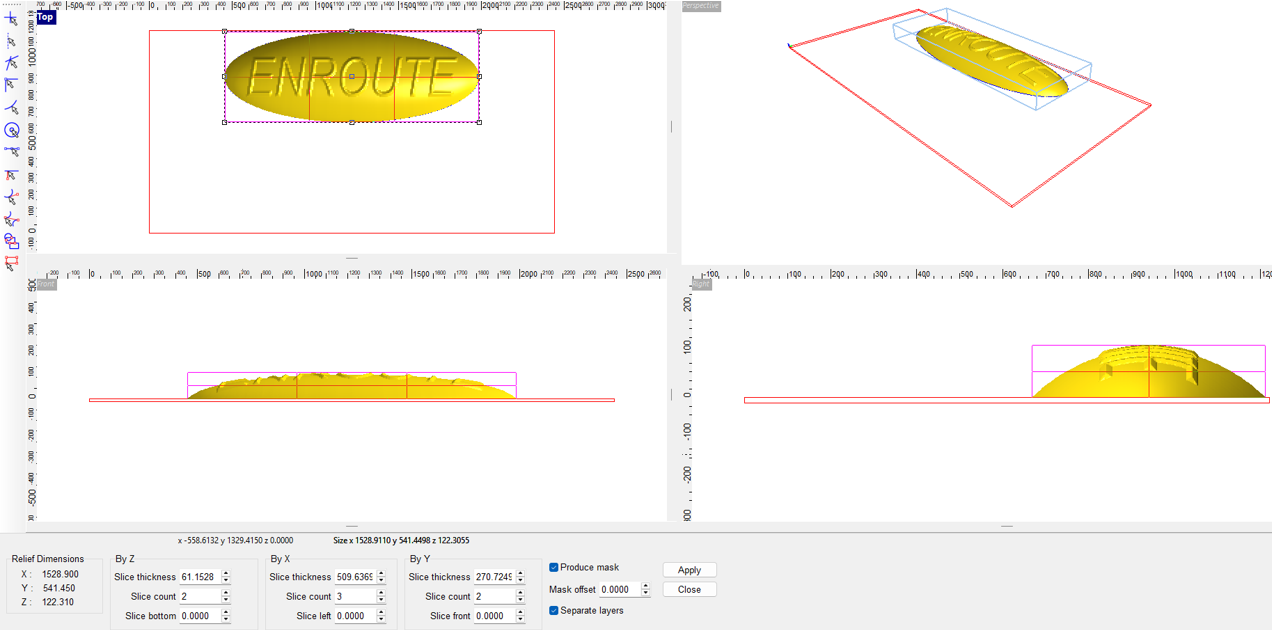

New settings of the relief slicing menu allows to set slices of X & Y
Slicing result when apply function with the settings above

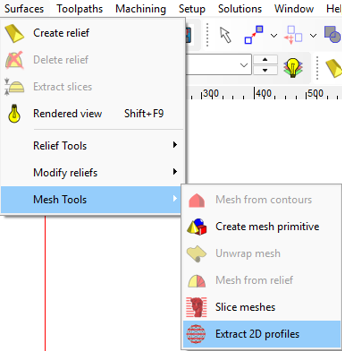

Extract 2D profiles for STL Files

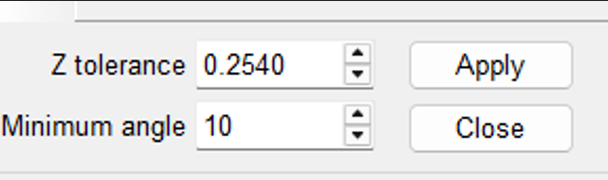

EnRoute now automatically extracts feature lines directly from STL geometry. This can convert 3D meshes into clean, usable profiles instantly, removing a major bottleneck in downstream toolpath creation. Wherever a cross-section changes, EnRoute identifies and generates the corresponding profile, giving you precise, ready-to-use geometry without manual cleanup.

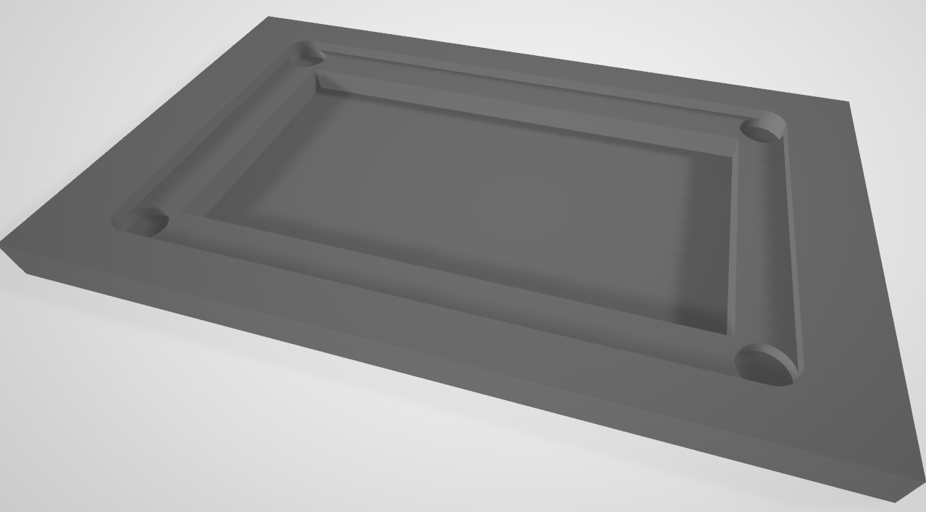

A sample stl where sections can be machined using +-2D tool paths

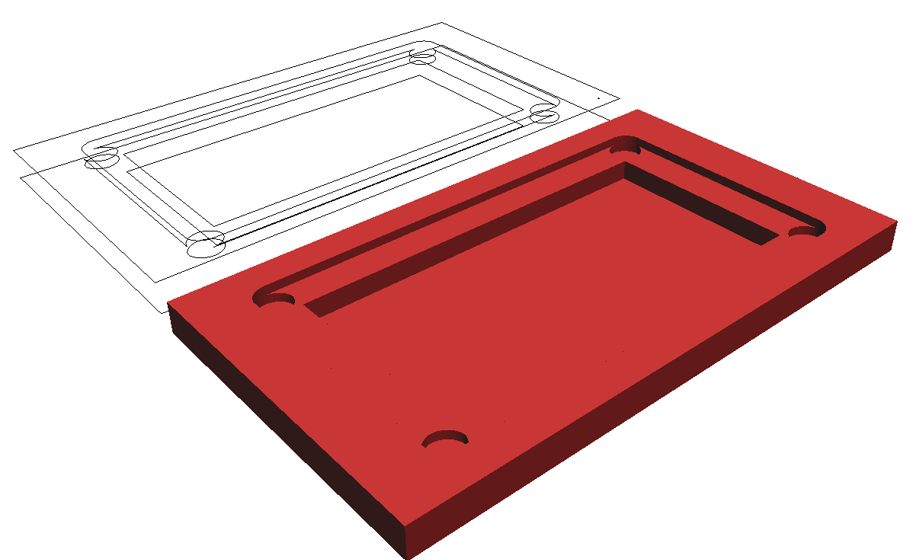

Profiles are generated at the corresponding depths where the coss-section changed
Simplified Post-Processor Selection
Switching post-processors is now as simple as choosing from a drop-down list during output. No more digging through menus — just select, confirm, and generate code.

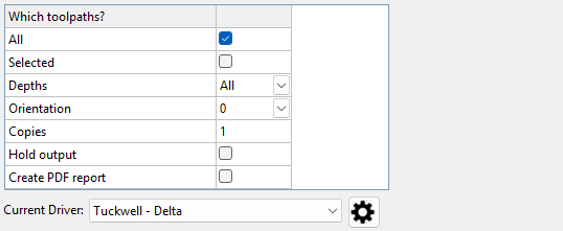

Dropdown menu with the output window
Small-Part Nesting
Small parts can now be nested automatically toward the center of the sheet, where vacuum hold-down is strongest. This reduces the risk of small parts shifting during the machining.
Post-Processor Saved Inside ATP Files
Your ATP setup now remembers which post-processor it uses. When you reopen an ATP file, it automatically loads the correct post, ensuring consistent output across devices and sessions.
Improvement selection behavior
Accidentally clicking empty space no longer clears a complex selection. You can now Ctrl-click to deselect items without losing your selection accidentally.
Auto-Grouping Only When Needed
EnRoute now auto-groups contours only when importing multiple files. Single imports remain untouched, giving you more control over geometry organization.
Fixed bugs
- Users can close a file before the output process has completed => access violation
- Fine tool path calculation issue
- Hatch fill toolpath does not evenly apply on edges
- Corner fine path is cutting out the profile tool
- DXF import issue - text is stretched out vertically
- Bridge and entry placement issue - snap / selection distances require too much precision
- Closing the Dimensions dialog box brings up an error message
- Corner fine tool is cutting out the corner profile
