Functionality updates
- Tool paths on mesh objects
Mesh objects can now be toolpathed directly without first applying it to a relief.

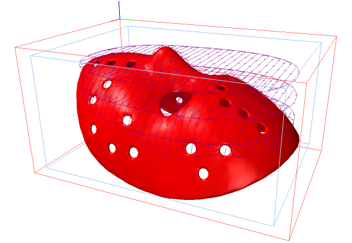

Toolpathed mesh object in EnRoute
- New filters for the EnRoute Hub
Added Favorites and Recently Used filters to the EnRoute Hub for easier strategy selection.

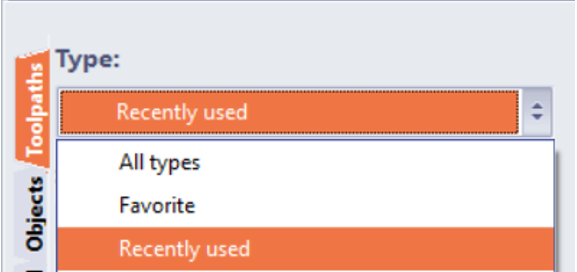

New filters for the EnRoute hub
Recently used will display up to 10 recently used strategies within the active file.
Favorites can be checked on via the library manager.

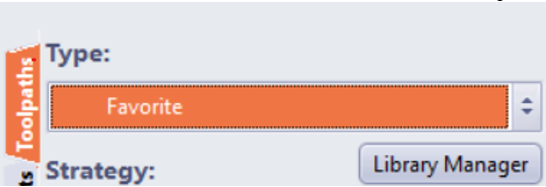

Library manager access within the hub
- Selected items indicator
A persistent “# selected items”-indicator has been added at the bottom of the interface.

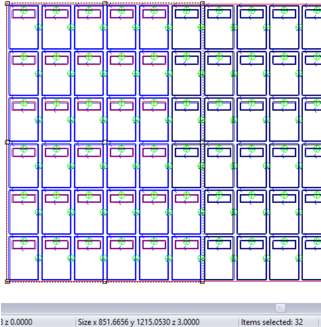

#items selected indicator on the bottom
- LabelMaker
LabelMaker can now combine LJD files into a single print job, reducing the number of sheets required when multiple label job fit on one sheet. The option has to be activated. Merging will only be applied when multiple jobs are added simultaneously.

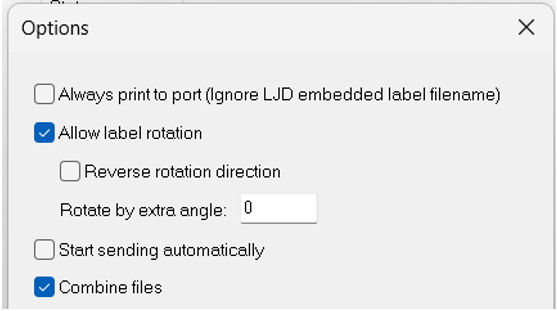

The Combine files with LabelMaker’s option
- Tool list availability for post-processors
Post-processors can now access complete tool lists for use in output file headers, including each tool's name and position in the tool changer. Existing post-processors require an update to support this functionality.
Eg.
Tool list;
TOOL #13 Drill 5mm
TOOL #14 Drill 3mm
TOOL #15 8mm Down Spiral Bit
TOOL #16 1/2 T Spiral Bit
Fixed bugs
- Fixed an exception when inspecting custom placeholders in the Label Editor.
- Fixed circle toolpath generation with two-point definitions.
- Fixed incorrect collision prevention with clean tools crossing external roughing passes.
- Fixed layer ordering inconsistencies between the Hub and classic Layer menu.
- fixed incorrect display of Point Editing details.
- Fixed deselection and reselection display issues with Move, Scale, and Rotate tools.
- Fixed strategy list updates when creating strategies outside the Hub.
- Fixed bridge application on spiral-down toolpaths.
- Fixed Hub refresh issues when applying toolpaths outside the Hub.
