Functionality updates
- New: 3D Solid Object Support EnRoute now supports true 3D solid objects.
Users can:
- Create solid primitives directly in EnRoute
- Import solid models via STEP (.stp / .step) files
- Extract 2D profiles from solid objects
- Convert solid objects into meshes and reliefs
Solid objects can be:
- Saved within EnRoute project files
- Exported as STEP or STL files for downstream workflows
This enables more advanced 3D workflows and better interoperability with CAD systems.

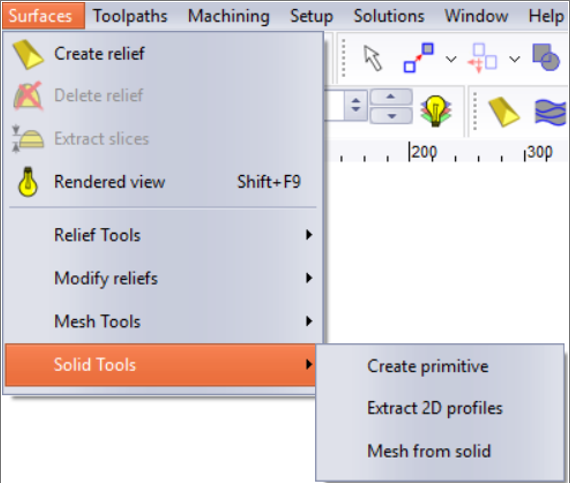

Solid tools within the surface menu

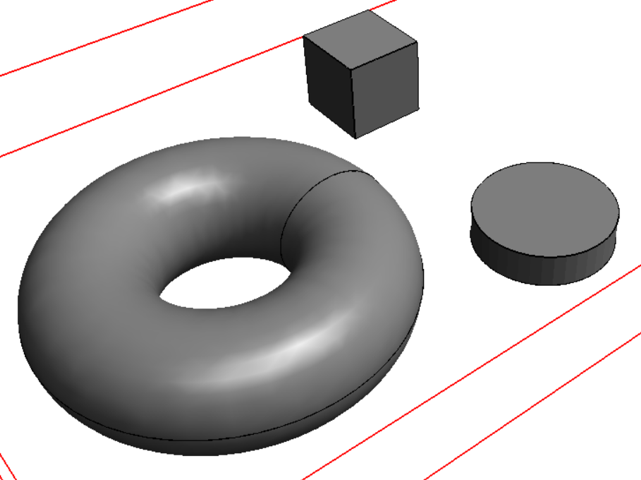

Primitive objects within EnRoute

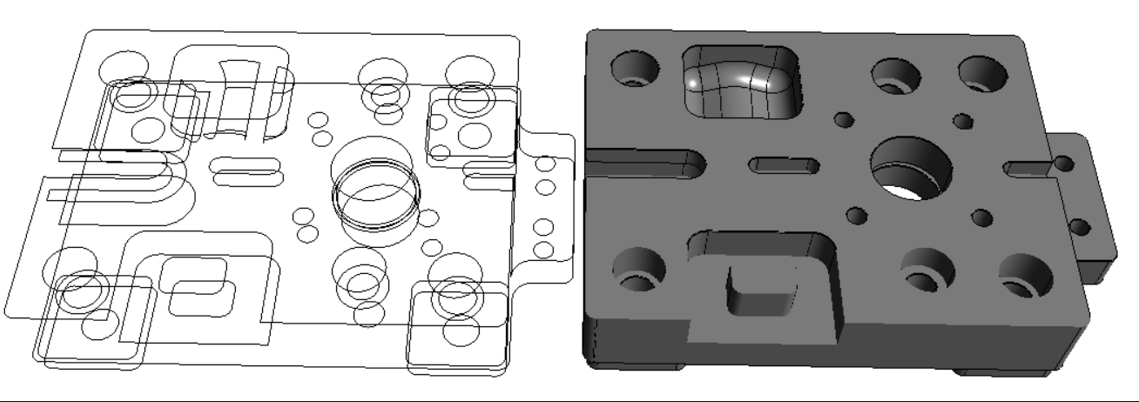

Profile extraction from a solid object

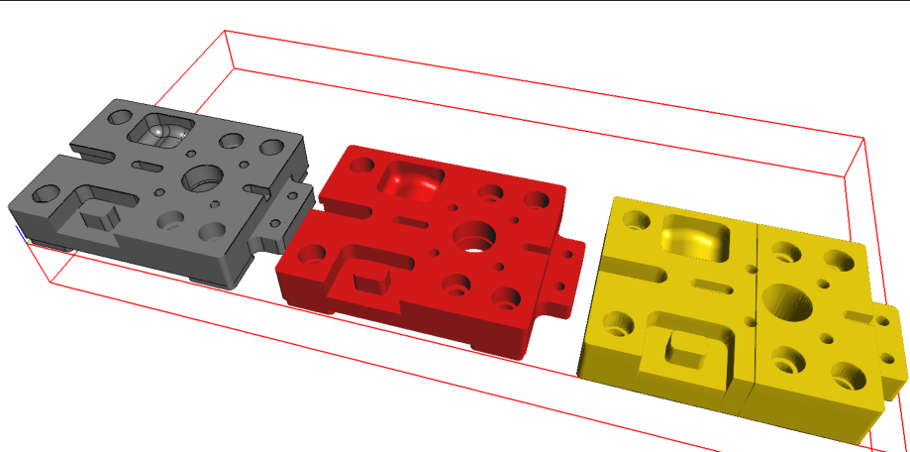

Imported solid object converted to a mesh & relief
- Improved Arc Output with Z-Axis Support Arc output can now include changes in the Z value.
Some machine controllers have issues when arc lead-ins are automatically segmented into linear moves. Users can now choose to output these entry moves as true arcs, improving compatibility and motion quality on supported controllers.
- New Language: Simplified Chinese EnRoute is now available in Simplified Chinese, expanding accessibility for Chinese-speaking users.
Fixed bugs
- Fixed an issue where loop standoffs for kerf compensation were not applied correctly.
- Resolved a problem where island fill combined with 3D ramp-in could result in missing toolpaths.
- Fixed an issue causing points on lines to disappear unexpectedly.
- Fixed a bug where using Undo after slicing could cause parts to disappear permanently.
- Improved LabelMaker stability and consistency across different systems.
- Added missing label formats in LabelMaker.
- Fixed an issue where automatic label printing could insert blank labels between prints.
- Resolved a problem where manually sorting toolpaths could restrict output to only the sorted paths.
- Fixed an issue where rotating toolpathed geometries could shift the entry point.
- Fixed a bug where maintaining start points and bridges during scaling was not applied correctly.
- Fixed an issue where drag-and-drop file import did not function as expected.
