Functionality updates

• Automatically Add Holes to Text

  Users can now automatically add holes to text using the new “Add Holes to Text” feature, streamlining the design process for signage, routing, and other cut-ready applications.

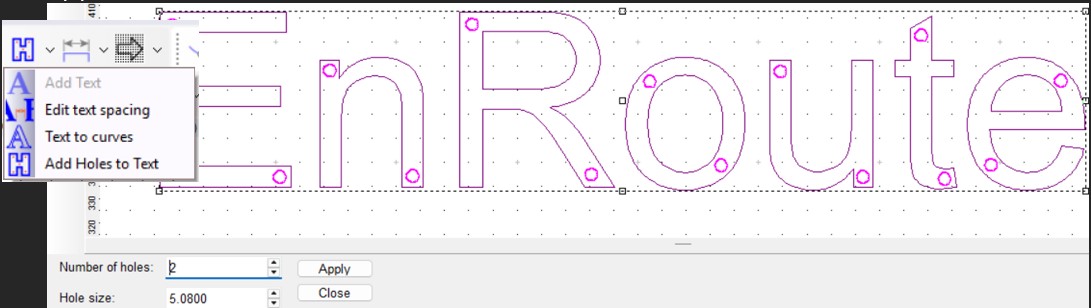

  Automatically add hole function



• Improved 3D Corner Engraving Quality

  To enhance engraving quality in 3D corners, users can now choose to use the plunge rate instead of the feed rate, allowing for smoother and more controlled motion in detailed areas.

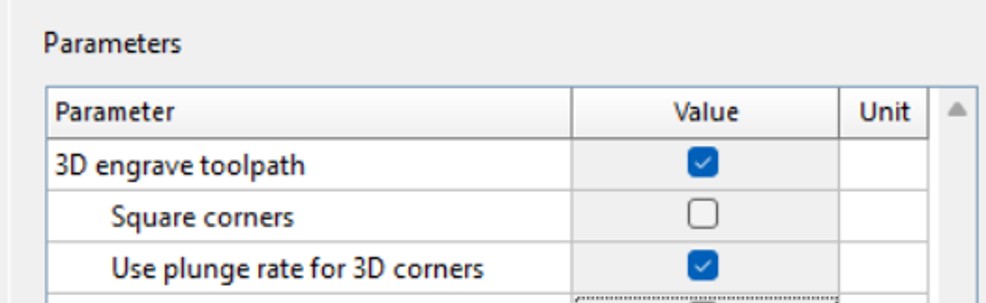

  New “use plunge rate” toggle



• Easier Support with the Support File Generator

  The newly introduced Support File Generator assists users in collecting all relevant files and packaging them into a ZIP file when contacting technical support. Based on the selected topic, a standard set of needed files is gathered automatically - others may need to be added manually - ensuring efficient and accurate troubleshooting.

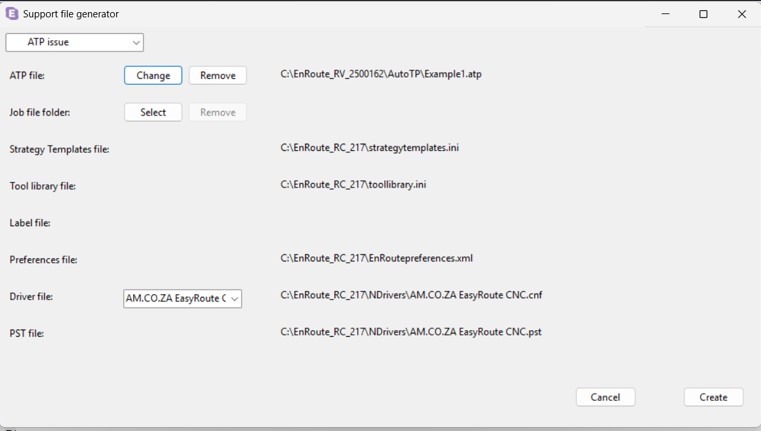

  Support file generator



• Dimension Settings Relocated for Easier Access

  Dimension settings have been relocated from the Preferences menu to the feature dialog, facilitating quicker adjustments and enhancing the overall workflow.

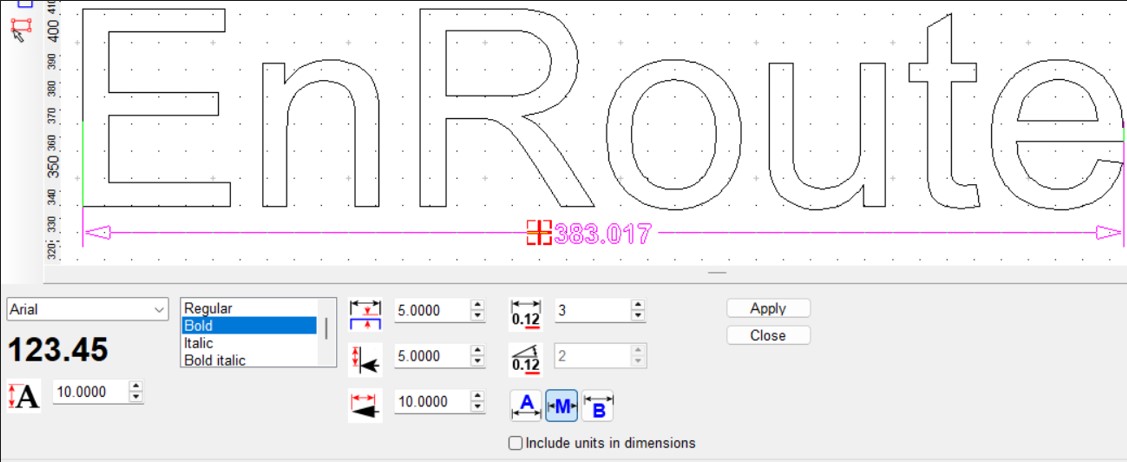

  Dimension settings within a feature dialog



• Archive to Cloud

  Users can now archive files directly in their cloud account, making it easier to back up, organize, and access projects from anywhere.

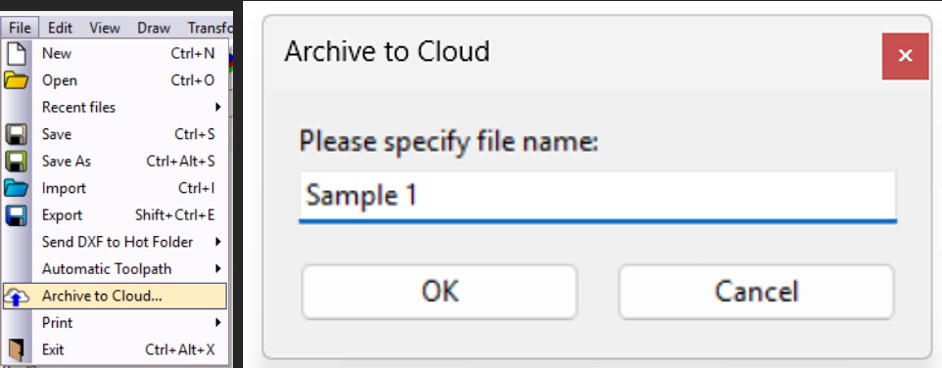

  Archiving to cloud



• Cloud Backup for Settings

  Users can now back up their settings in the cloud, ensuring easy recovery and consistency across devices.

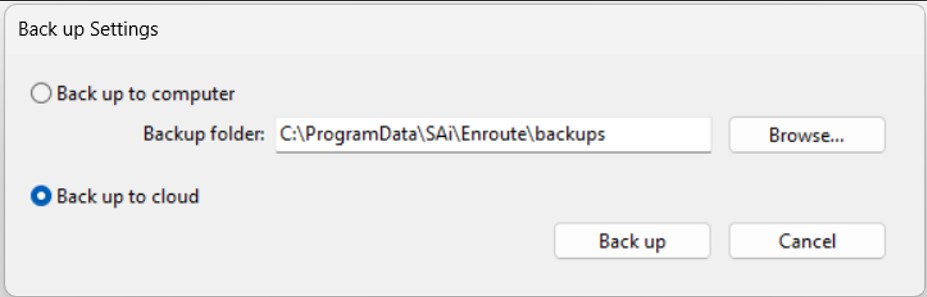

  Back up dialog



• Access tool path / dimension options by double clicking

  Double clicking on a tool path or dimension now opens the corresponding edit menu



• Improved Import Handling

  Imported objects now are opened as grouped elements, making them easier to select, move, and place—streamlining the post-import workflow.



• Grouped Objects Stay Grouped After Tool pathing

  When applying toolpaths to grouped objects, they will now remain grouped—making it easier to manage, move, and edit tool pathed designs without losing structure.

Fixed bugs

• Drag knife creating incorrect rounded corners
• Bridges cannot be applied to grouped objects
• Scaling with lead lines present shows incorrect size
• Plate from contour cannot be undone
