Functionality updates

• Labels remain available after the ATP process

When jobs are processed with ATP, labels now remain linked to the toolpathed parts. This means that if a user manually re-nests parts and re-outputs using G1, EnRoute will regenerate the labels to match the updated G-code. The result is that labels are always correctly positioned, with no risk of mismatches between parts on the sheet and their labels.

When outputting with G1 on an ATP-generated EnRoute file that includes label information, users will see a prompt asking whether they want to output the labels as well. The link between parts and labels will remain active until EnRoute is closed.

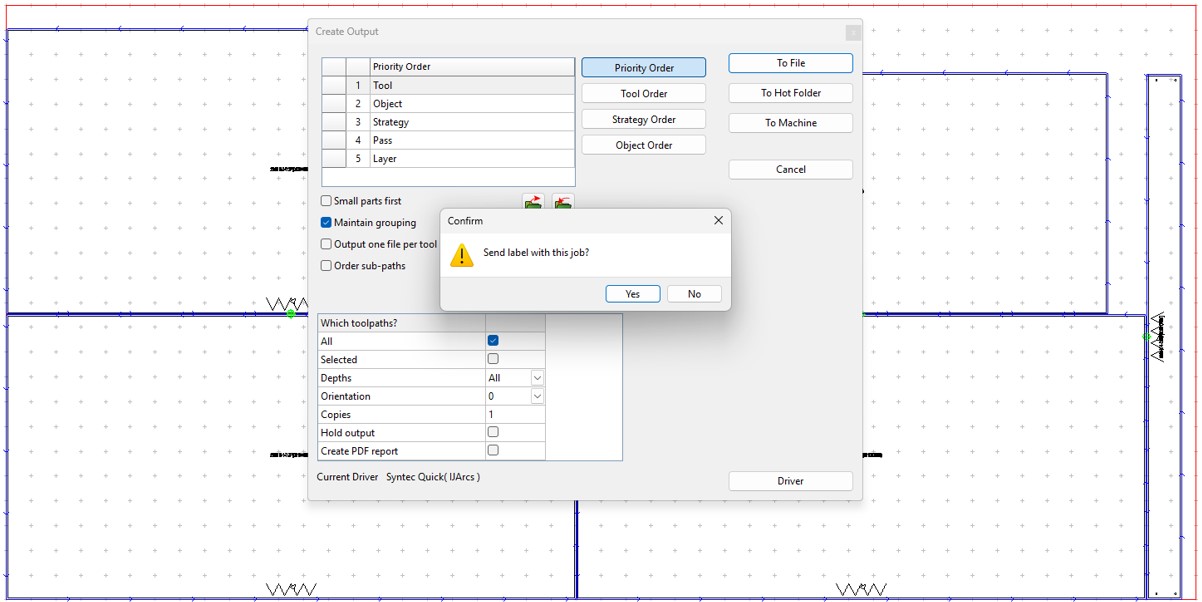

label prompt upon output with G1

• Engrave option to ensure bi-directional cutting

A new checkbox allows users to enforce bi-directional toolpathing when engraving. Even when a single tool pass is sufficient to clear the material, the tool will also cut in the opposite direction. This ensures consistent cut quality on both sides of the engraved path, resulting in smoother edges and a more uniform finish.

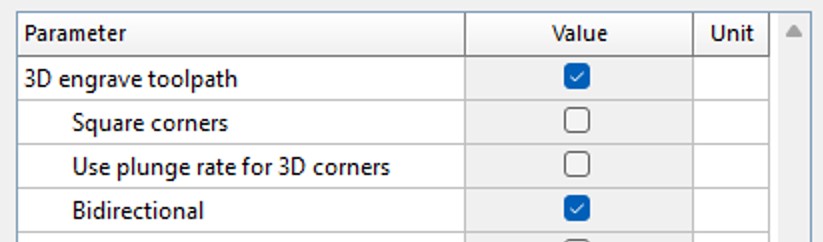

Bi-directional checkbox under the 3D engrave options

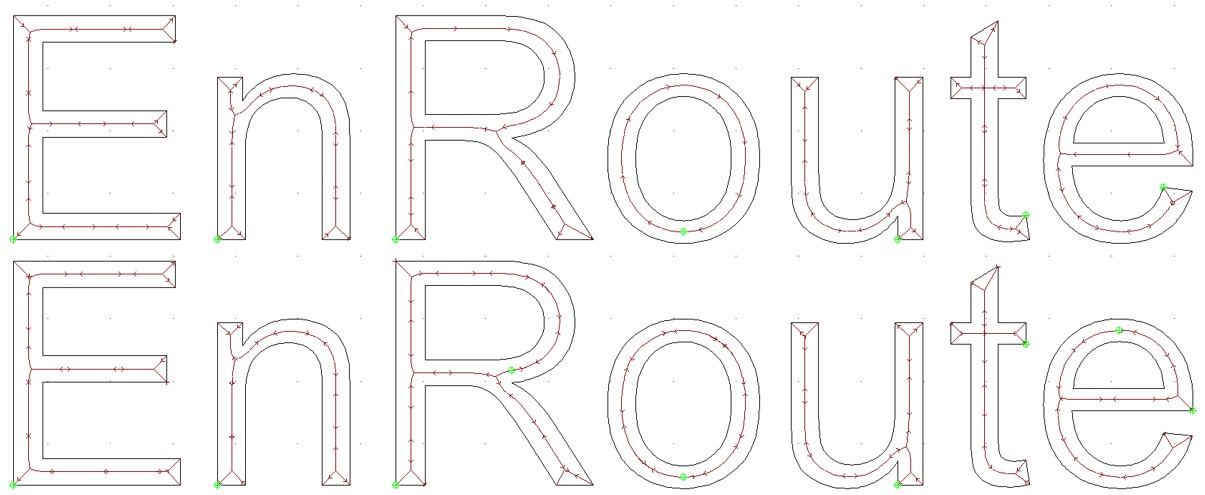

Without and with bi-directional enforcement

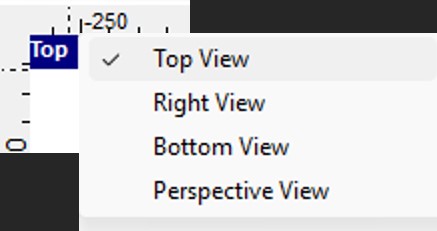

• Right clicking the “view”-option

In addition to double-clicking the “View” button to open the Quad View, users can now also right-click the button to quickly switch between any available view.

Fixed bugs

• Detect & delete duplicate tool causes an access violation error
• When creating bridges with automatic cut off, the cut off startpoint and bridge are not linked
• Edit Drill Bank Window does not save when clicking "Okay"
• Open routing offset on specific files causes access violation
