View Filter

Objects may be filtered by their color in the design area. For example, you can show all objects using RGB color space, or all green objects.

While objects are filtered from view, they will also be prevented from entering production and will not show up in the RIP & Print window or the Cut/Plot window.

Filtering Objects Using the Color Filter

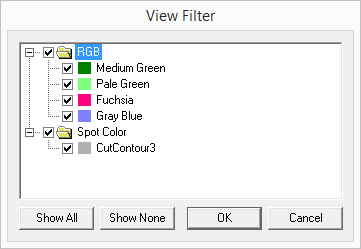

  • From the View menu, select View Filter.


  • Select the colors that will be visible.
    • Click the color space check box to select all colors in this color space.
    • Click a specific color within one color space to select or deselect the color.
    • Click Show All to select all colors from all color spaces.
    • Click Show None to deselect all colors from all color spaces.
  • Click OK.

Filtering settings will not be saved with your document. The next time you open this file, all the objects will be visible.



Filtering Objects Using the Color Swatch Table

If the Swatch Table is not visible, from the View menu, select Swatch Table.

  • From the Swatch Table, right-click the color you want to filter by.
  • From View, select the filtering option.
  • Choose one of the following options:
Hide This Color Objects using this color will not be visible.
Show This Color Objects using this color will be visible.
Show All Except This Color Only the objects using this color will not be visible.
Show all colors All objects will be visible.
Hide All Except This Color Only the objects using this color will be visible.



SwatchTableFilterBefore.png SwatchTableFilterHidden.png

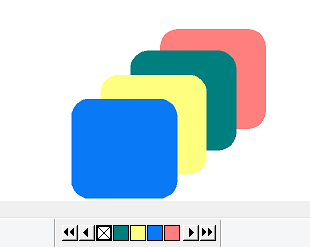

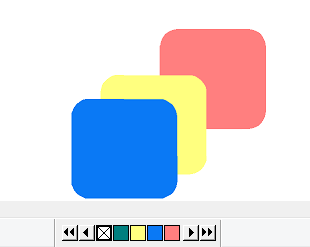

Cursor over the Swatch Table After selecting Hide This Color for green
