Stripe Effect

This effect applies a stripe effect to the object. There are three different options for stripes, each with their own settings in DesignCentral:



Gradient


Stripe Mode


Changes the Stripe type.

Stripe Count


Changes the number of stripes in the object.

5                                                   8
mceclip7.png         mceclip8.png

Stripe Gap


Changes the width of the stripe gap in proportion to the stripe.

50%                                              75%

mceclip7.png         mceclip9.png

Stripe Angle


Sets the angle of the stripe to a certain angle.

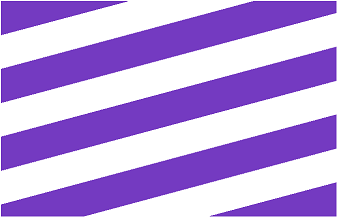

0°                                                  15°

mceclip7.png         mceclip10.png

Stripe Gradient


Determines how strong the gradient effect is. This is disabled unless the Gap Type is changed to Varying Stripes or Gaps.

No Gradient                                   10% Gradient

mceclip7.png        mceclip11.png

Gap Type


Even Stripes and Gaps     Vary Stripes 25%          Vary Stripes and Gaps 25%

mceclip7.png     mceclip12.png    mceclip13.png

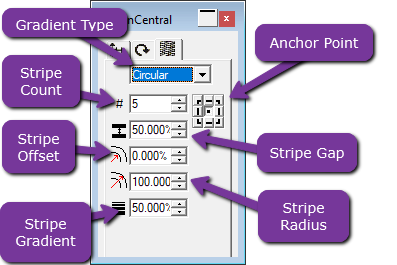

Circular


Stripe Mode


Changes the Stripe type.

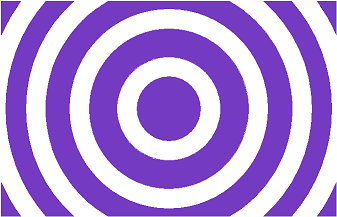

Stripe Count


Changes the number of stripes in the object.

5                                                      8

mceclip15.png         mceclip16.png

Stripe Gap


Changes the width of the stripe gap in proportion to the stripe.

50%                                               75%

mceclip15.png        mceclip17.png

Anchor Point


Anchors the origin of the circular pattern at the designated point.

Center      mceclip18.png                               Bottom Left mceclip20.png

mceclip15.png      mceclip19.png

Stripe Offset


Changes the point at which the first gap appears.

0%                                                 25%

mceclip15.png       mceclip21.png

Stripe Radius


Reduces the full radius of the stripes.

100%                                              50%

mceclip15.png       mceclip23.png

Stripe Gradient


Gradients the circle.

50%                                               0%

mceclip15.png        mceclip28.png

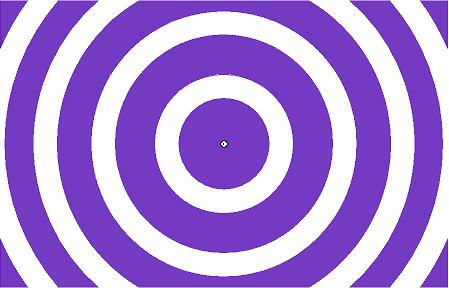

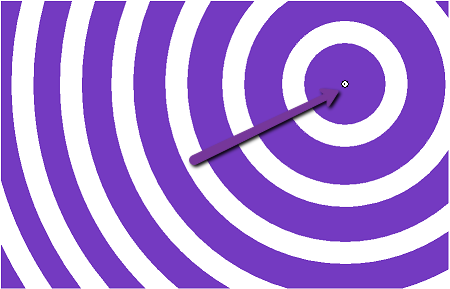

With the Circular Stripe, there is a handle at the center that allows you place the origin of the Stripe in a specific location. Click and Drag to move it.

mceclip30.png        mceclip31.png

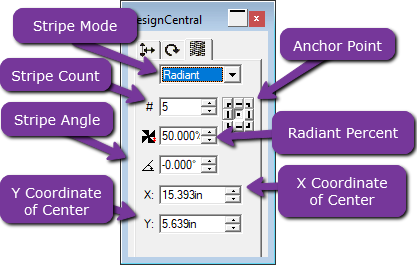

Radiant


Stripe Mode


Changes the Stripe type.

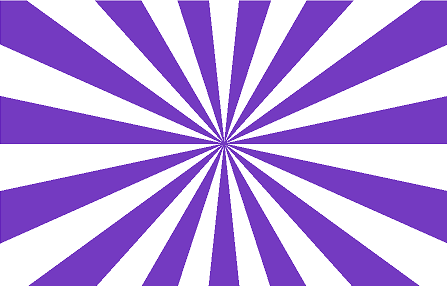

Stripe Count


Changes the number of stripes in the object.

8                                                        15

mceclip36.png      mceclip37.png

Anchor Point


Anchors the origin of the radiant stripes at the designated point.

Center      mceclip18.png                               Bottom Left mceclip20.png

mceclip36.png      mceclip43.png

Radiant Percent


Changes the width of the stripes.

50%                                                    75%

mceclip36.png    mceclip40.png

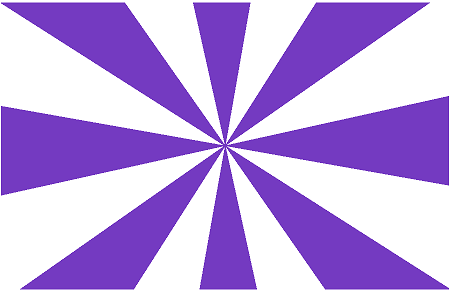

Stripe Angle


Changes the orientation of the stripes.

45°                                                    80°

mceclip36.png    mceclip42.png

XY Coordinate of Center Point


Positions the origin of the radiant stripes. This is in relation to the origin of the entire document, not the object. The origin can be outside the boundaries of the object, but only the stripes inside the boundary of the object will be visible.

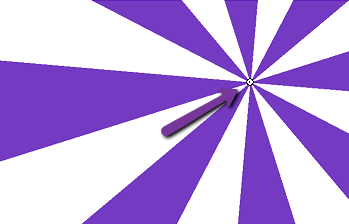

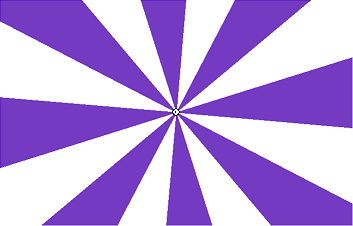

With the Circular Stripe, there is a handle at the center that allows you place the origin of the Stripe in a specific location. Click and Drag to move it.

mceclip45.png          mceclip47.png
