Trim Marks

This allows you to create Trim Marks to designate the edge of your design for cutting.

To use:

  • Select an object
  • Go to Effects > Trim Marks

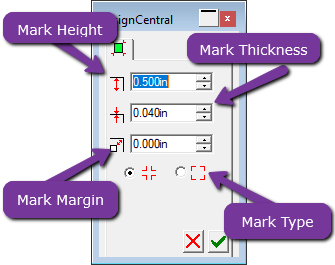

You can adjust the following parameters in DesignCentral:


Mark Height


Adjusts the height of the mark arms.

Mark Thickness


Adjusts the thickness of the lines of the mark.

Mark Margin


Adjusts the distance between the object and the trim marks.
Mark Typemceclip5.png

Changes the orientation of the mark.

mceclip7.png                                                mceclip8.png

mceclip2.png         mceclip6.png
