Blending Effect

Your software allows you to blend two objects. The shape and color of one object will gradually change to another object. Both objects must be vector objects. (note: Don't get this confused with Blending Modes)

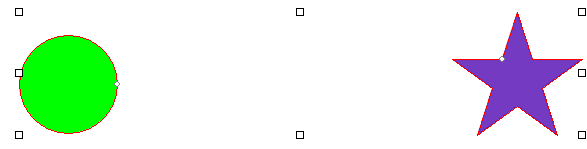

  • Select two objects. The last object selected becomes the target object.
  • From the Effects menu, select Blend.
    • The Blend tab appears in DesignCentral.
  • Adjust the number of steps in DesignCentral. This determines the number of morphing shapes between the beginning and end shapes.

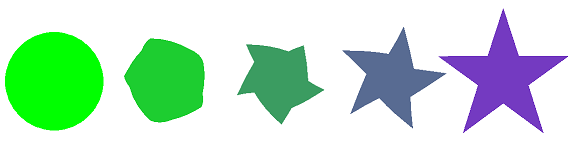

    • 3 steps:

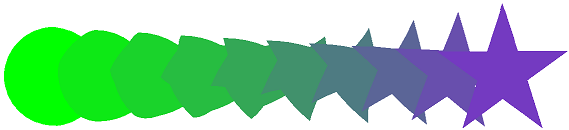

    • 8 steps:
  • Click Apply. mceclip4.png
